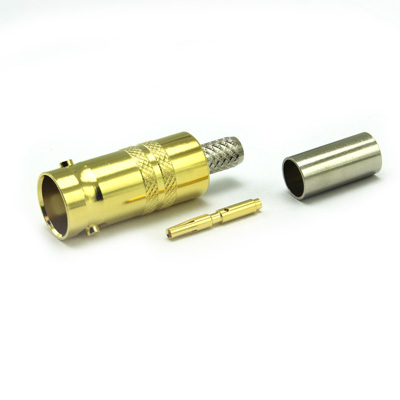

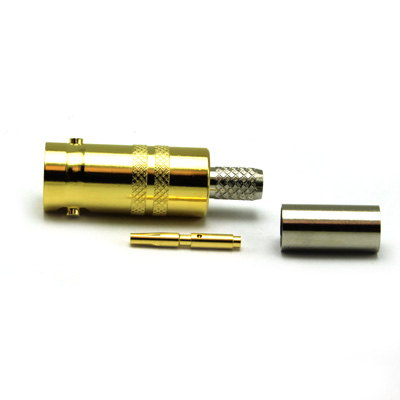

BNC Straight Crimp / Crimp Jack True 75 Ohm (12GHz)

10-054-D126-BH

BNC True 75 ohm straight crimp jack, With A Return Loss of -28db @ 12Ghz and -14db @ 18GHz is ideally suited for for 12G applications. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre and outer contact are gold plated. Suitable for all cables in group BH.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -28 dB @ 12GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 8.86g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group BH

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
735A BH 75 3.28 PEF 1.96 SPC 0.41 1/0.41 Foil and Braid
Belden 735C1 BH 75 3.4 PEF 1.96 SPC 0.43 1/0.43 Foil and Braid
Canford SDV-M BH 75 3.1 FHPE 1.9 BC 0.41 1/0.41 Foil and Braid
CT1320 BH 75 3.28 PEF 1.96 SPC 0.41 1/0.41 Foil and Braid
Draka 0.41/1.9 AF BH 75 3.1 PEF 1.9 BC 0.41 1/0.41 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
3GHz -21.61dB
6GHz -18.56dB
9GHz -24dB
12GHz -28.19db
18GHz -14.89dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact .95 mm Sq 96-HTS-43
Outer Contact 4.52mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-HTS-43
Outer Contact Crimp Tool 96-HTS-43

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 054 D126 BH REV A00 2
Assembly Process AP001
