10-054-D126-FB

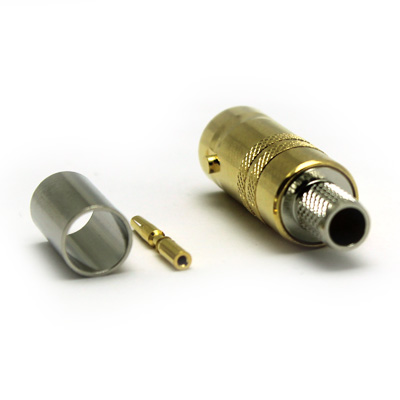

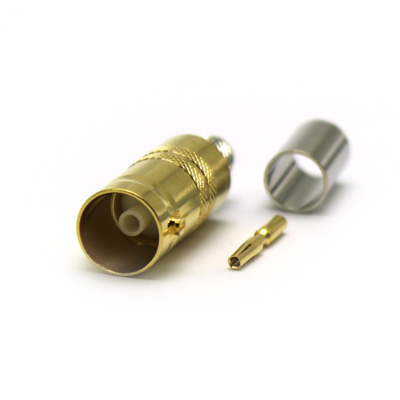

BNC Straight Crimp / Crimp Jack True 75 Ohm (12GHz)

BNC True 75 ohm straight crimp jack, With A Return Loss of -28db @ 12Ghz and -14db @ 18GHz is ideally suited for for 12G applications. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre and outer contact are gold plated. Suitable for all cables in group FB.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 12GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-28 dB @ 12GHz
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	100N min
Weight	8.53g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group FB

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
70081NH	FB	75	5.92	PEF	3.68	BC	0.81	1/0.81	Bonded Foil and Braid
Belden 1505A	FB	75	5.94	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 4505ANH	FB	75	5.99	PEF	3.7	BC	0.81	1/0.81	Bonded Foil and Braid
Belden 4505ANH	FB	75	5.99	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 4505R	FB	75	5.94	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Belden 70081NH	FB	75	5.92	PEF	3.68	BC	0.81	1/0.81	Foil and Braid
Bryant BD SD50A	FB	75	6.1	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Bryant BD SD50A	FB	75	6.1	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Canare L-4CFB	FB	75	6.1	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Canare L-4CHD	FB	75	6.1	PEF	3.68	BC	0.82	1/0.82	Foil and Braid
Conducfil 14472	FB	75	5.9	PEF	3.7	BC	0.8	1/0.80	Foil and Braid
Draka 0.8/3.7AF	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Draka HD PRO 0.8/3.7 AF	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Image 720	FB	75	5.9	PEF	3.7	BC	0.8	1/0.8	Foil and Braid
Percon VK6	FB	75	6	PEF	3.7	BC	0.81	1/0.81	Foil and Braid
Percon VK66	FB	75	6.14	PEF	3.7	BC	0.97	7/0.29	Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Return Loss
3GHz	-21.61dB
6GHz	-18.56dB
9GHz	-24dB
12GHz	-28.19db
18GHz	-14.89dB

Assembly

Assembly Process	AP001
Centre Contact	1.72 mm Sq	96-HTS-76
Outer Contact	6.48mm Hex	96-HTS-76

Accessories

Centre Contact Crimp Tool	96-HTS-76
Outer Contact Crimp Tool	96-HTS-76

Downloads

Interface Dimensions	C-75-Ohm-BNC
Data Sheet	10 054 D126 FB REV A01 1
Assembly Process	AP001
