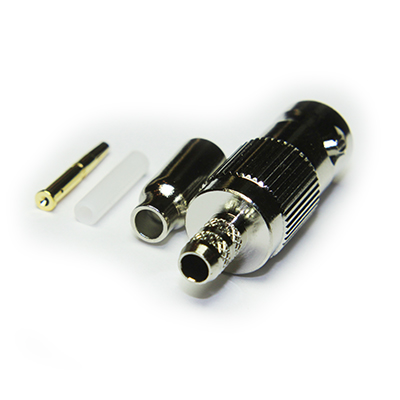

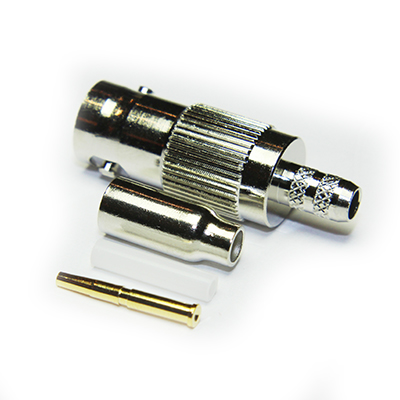

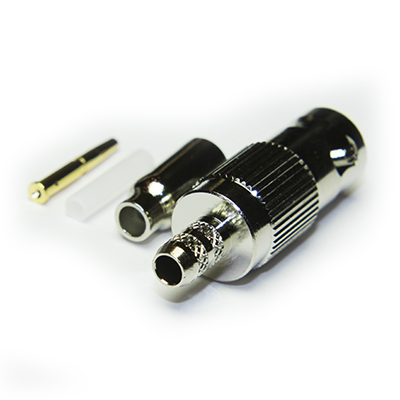

BNC Straight Crimp / Crimp Jack ( 4 Part )

10-055-A0-AB

BNC 75 ohm straight jack, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for Mini RG179 black or similar cables in group AB.

From £0.72 each ex VAT
1-9 = £0.96 |  10-24 = £0.90 |  25-49 = £0.80 |  50-99 = £0.76 |  +100 = £0.72

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 12.2g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 179DT AB 75 2.54 PEF 1.42 BC 0.31 1/0.31 Foil and Braid
RG179 B/U AB 75 2.54 PTFE 1.6 SCCS 0.3 7/0.1 Copper Braid
RG179 Solid AB 75 2.54 Foam 1.6 SCSC 0.3 1/0.3 Copper Braid
RG179 Stranded AB 75 2.54 Foam 1.6 SCSC 0.3 7/0.1 Copper Braid
RG187 AB 75 2.67 PTFE 1.52 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP002
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 5.41mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Rotary Cable Stripper 96-312X
Black Strain Relief Boot 97-800-BK-03
Red Strain Relief Boot 97-800-RE-03
Green Strain Relief Boot 97-800-GN-03
Blue Strain Relief Boot 97-800-BU-03
Yellow Strain Relief Boot 97-800-YE-03

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Assembly Process AP002
