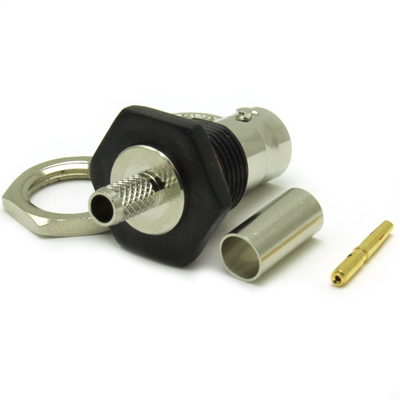

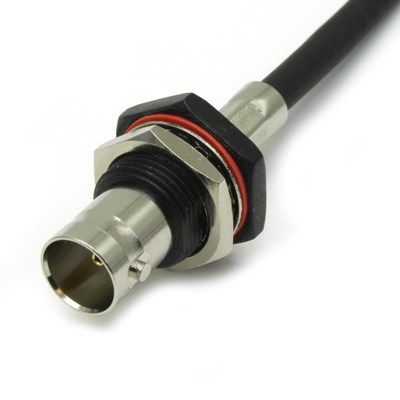

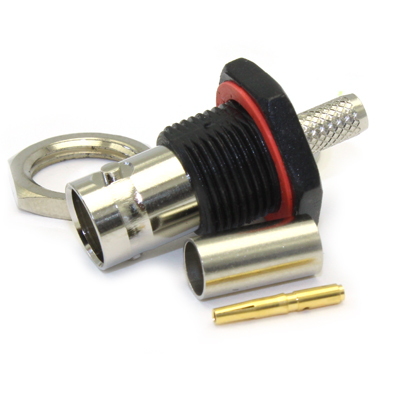

BNC Insulated Rear Mount Bulkhead Straight Crimp / Crimp Jack

10-258-B36-FA

BNC 75 ohm insulated straight bulkhead crimp jack, rear mounted, for applications up to 4.5GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for cables in group FA

Error loading MacroEngine script (file: )

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -17.9 dB @ 4.5GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 120N min
Weight 13g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -50 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Body Insulation Black ABS
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group FA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belcom EventSeries HD600 LSZH FireFighter FA 75 4.5 PEF 2.8 BC 0.65 1/0.65 Foil and Braid
Belden 1855ECH FA 75 4.6 Foam 2.9 BC 0.65 1/0.65 Foil and Braid
Belden 1855ENH FA 75 4.45 PEF 2.8 TC 0.6 1/0.6 Foil and Braid
Belden 4855ELW FA 75 4.47 Foam 2.89 SCSC 0.66 1/0.66 Foil and Braid
Belden 70080NH FA 75 4.45 PEF 2.9 BC 0.65 1/0.65 Foil and Braid
Belden H123A02 FA 75 4.3 PEF 2.9 CU 0.65 1/0.65 Foil and Braid
Bryant BD SD01 FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Bryant BD SD01 FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Canford SDV FA 75 4.5 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Canford SDV-LFH FA 75 4.6 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Canford SDV-UHD-LFH FA 75 4.5 PEF 2.8 BC 0.7 1/0.7 Foil and Braid
Canford SDV-X-LFH FA 75 4.5 PEF 2.8 BC 0.64 1/0.64 Foil and Braid
Conducfil 9890 FA 75 4.5 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Draka 0.6/2.8AF FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Draka HD PRO 0.6/2.8AF FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Image 360 FA 75 4.6 PEF 2.95 BC 0.6 1/0.6 Foil and Braid
Percon VK4 FA 75 4.4 PEF 2.6 BC 0.57 1/0.57 Foil and Braid
Percon VK5 FA 75 4.5 PEF 2.8 BC 0.57 1/0.57 Foil and Braid
Percon VK50 Silver+ FA 75 4.5 PEF SC 0.57 1/0.57 Foil and Braid
Percon VK50 Silver+ FA 75 4.5 PEF SC 0.57 1/0.57 Foil and Braid
TACHII TCX-2.8CHD FA 75 4.4 PEF 2.7 BC 0.6 1/0.6 Foil and Braid
Van Damme SDI Vision FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
1GHz -28.9dB
2GHz -22.2dB
3GHz -22.2dB
4.5GHz -17.9dB

Assembly

Assembly Process AP001
Stripping Dimensions 10-258-B36-SD
Centre Contact 1.72 mm Hex 96-HTS-75
Outer Contact 5.41mm Hex 96-HTS-75

Accessories

Centre Contact Crimp Tool 96-HTS-75
Outer Contact Crimp Tool 96-HTS-75
Rotary Cable Stripper 96-312B
Black Strain Relief Boot 97-800-BK-05
Red Strain Relief Boot 97-800-RE-05
Green Strain Relief Boot 97-800-GN-05
Blue Strain Relief Boot 97-800-BU-05
Yellow Strain Relief Boot 97-800-YE-05
Brown Strain Relief Boot 97-800-BN-05
Grey Strain Relief Boot 97-800-GY-05
Orange Strain Relief Boot 97-800-OR-05
White Strain Relief Boot 97-800-WT-05
Violet Strain Relief Boot 97-800-VI-05
16mm Dia Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions 10-258-B36-SD
Data Sheet 10 258 B36 FA REVA00 1
Assembly Process AP001
