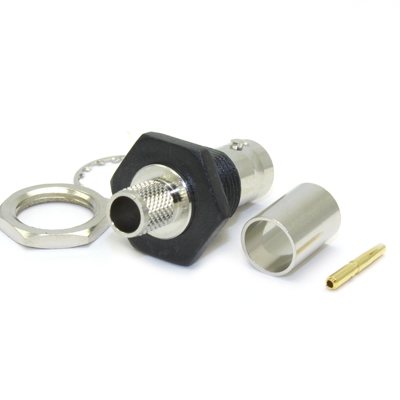

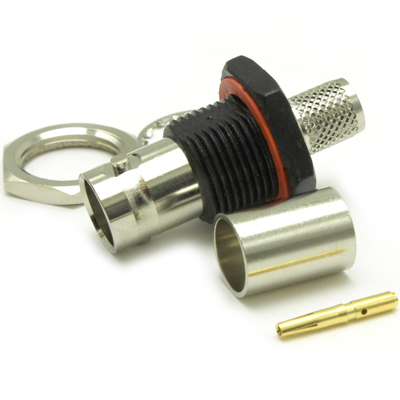

BNC Insulated Rear Mount Bulkhead Straight Crimp / Crimp Jack

10-258-B36-FC

BNC 75 ohm insulated straight bulkhead crimp jack, rear mounted, for applications up to 4.5GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for cables in group FC

From £2.35 each ex VAT
1-9 = £3.00 |  10-24 = £2.95 |  25-49 = £2.70 |  50-99 = £2.50 |  +100 = £2.35

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -17.9 dB @ 4.5GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 120N min
Weight 13g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -50 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Body Insulation ABS ( Black )
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group FC

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
70082NH FC 75 6.96 PEF 4.57 BC 1.02 1/1.02 Bonded Foil and Braid
Belcom EventSeries HD1000 LSZH FireFighter FC 75 6.8 PEF 4.8 BC 1 1/1.0 Foil and Braid
Belden 1694A FC 75 6.96 FHPE 4.57 BC 1.016 1/1.016 FoilandBraid
Belden 1694F FC 75 7.01 PEF 4.57 BC 1.02 7/0.36 Double Copper Braid
Belden 1695A FC 75 5.82 PEF 4.32 BC 1.02 1/1.02 Foil and Braid
Belden 4694ANH FC 75 6.95 PEF 4.57 SPC 1.02 1/1.02 Foil and Braid
Belden 4694F FC 75 7.0 FHPE 4.57 BC 1.02 1/1.02 Double Copper Braid
Belden 4694P FC 75 5.82 PEF 4.3 SPC 1.02 1/1.02 Foil and Braid
Belden 4694R FC 75 6.98 PEF 4.57 BC 1.02 1/1.02 Copper Braid
Belden H124Co2 FC 75 7.0 Foam 4.4 BC 1.0 1/1.0 Bonded Foil and Braid
Bryant BD SD10F FC 75 7 PEF 4.57 BC 1.1 7/0.36 Double Copper Braid
Bryant BD SD11 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Bryant BD SD11 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Canare L-5CHD FC 75 7.0 PEF 4.57 BC 1.02 1/1.02 Foil and Braid
Canford SDV-F FC 75 6.8 FHPE 4.8 BC 1 19/0.2 Foil and Braid
Canford SDV-L FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-LFH FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-SR FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-X-LFH FC 75 7 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Conducfil 13653 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Draka 1.0/4.8 AF FC 75 7 PEF 4.8 BC 1 1/1.0 Foil and Braid
Draka HD PRO 1.0/4.8 AF FC 75 7 PEF 4.8 BC 1 1/1.0 Foil and Braid
Draka HD PRO FLEX 1.0L/4.8 AF Dz FC 75 7 FHPE 4.8 BC 1 7/0.32 Double Copper Braid
Image 1000 FC 75 6.8 PEF 4.8 BC 1 1/1.0 Foil and Braid
Percon VK7 FC 75 7 PEF 4.7 BC 1.02 1/1.02 Foil and Braid
Percon VK70 ENH FC 75 7.1 PEF 4.7 BC 1.02 1/1.02 Foil and Braid
Percon VK77 FC 75 7 PEF 4.7 BC 1.08 7/0.36 Double Copper Braid
TACHII TCX-4CHD FC 75 6.5 PEF 4.3 BC 1.05 1/1.05 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
1GHz -28.9dB
2GHz -22.2dB
3GHz -22.2dB
4.5GHz -17.9dB

Assembly

Assembly Process AP001
Stripping Dimensions 10-258-B36-SD
Centre Contact 1.72 mm Hex 96-HTS-75
Outer Contact 8.23mm Hex 96-HTS-75

Accessories

Centre Contact Crimp Tool 96-HTS-76
Outer Contact Crimp Tool 96-HTS-76
16mm Dia Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions 10-258-B36-SD
Data Sheet 10 258 B36 FC REV A00 1
Assembly Process AP001
