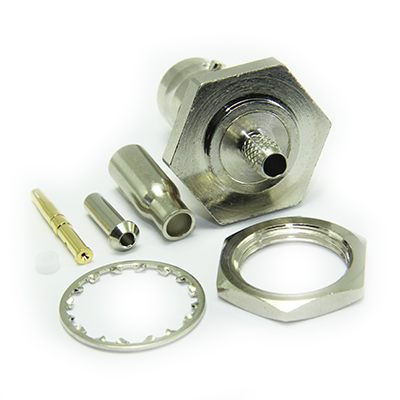

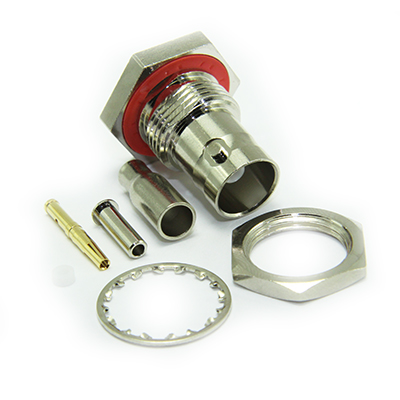

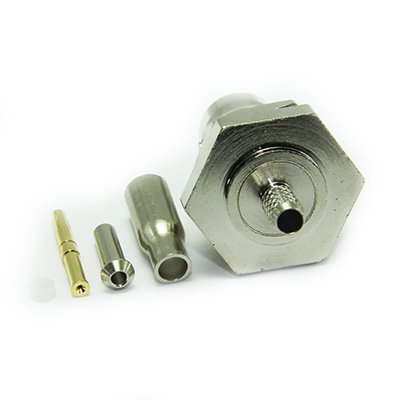

BNC Rear Mount Bulkhead Straight Crimp / Crimp 3GHz Jack ( 5 part )

10-282-B36-BG

BNC True 75 ohm straight bulkhead crimp jack, for applications up to 3GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RA 8000 or similar cables in group BG.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 3GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 19.5g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group BG

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RA8000 BG 75 2.75 PEF 1.45 BC 0.31 1/0.31 Foil and Braid

Performance

Performance Data 10 282 B36 BG PD
Return Loss
1.5 GHz -17.41 db
3.0 GHz -12.15 db
4.5 GHz -10.04 db

Assembly

Stripping Dimensions SD01
Centre Contact 1.46 mm Hex 96-HTS-43
Outer Contact 4.52 mm Hex 96-HTS43

Accessories

Centre Contact Crimp Tool 96-HTS-43
Crimp Tube Crimp Tool 96-HTS-43
16mm Dia Castle Nut 100-075
Castle Nut Spanner 96-1140

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 282 B36 BG REV A01 1
Performance Data 10 282 B36 BG PD
