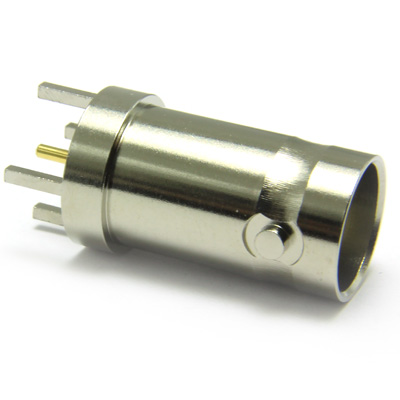

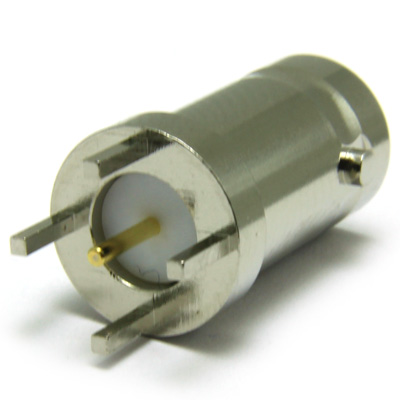

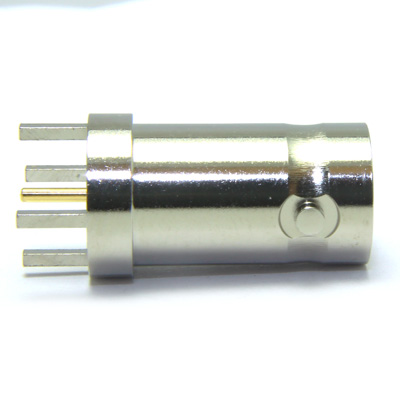

BNC Straight PCB Mount Jack, 75 Ohm ( Legs Rotated 45 deg)

10-491-B6-45

BNC 75 ohm straight PCB jack for applications up to 4.5GHz. Gold plated centre contact, Brass Nickel plated body with a board height of 18.8mm, Legs have been rotated 45 deg so the legs are in line with the Bayonet locking lugs.

From £1.47 each ex VAT
1-9 = £2.00 |  10-24 = £1.87 |  25-49 = £1.63 |  50-99 = £1.58 |  +100 = £1.47

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 250
Contact Retention 10N min
Cable Retention 50N min
Weight 6.25g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder

Accessories

Downloads

Interface Dimensions C-75-Ohm-BNC
Data Sheet 10 491 B6 45 REV A01 1
