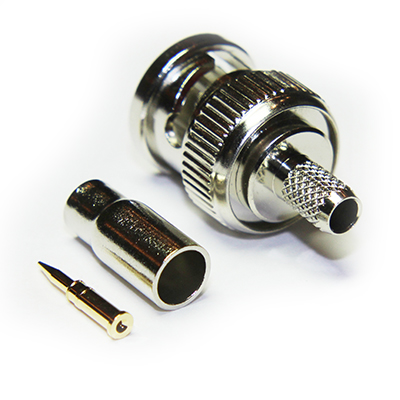

BNC Straight Crimp / Crimp Plug

10-005-A0-AG

BNC 75 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for Mini RG59 white or similar cables in group AG.

From £0.58 each ex VAT
1-9 = £0.77 |  10-24 = £0.73 |  25-49 = £0.64 |  50-99 = £0.61 |  +100 = £0.58

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 50N min
Weight 10.3g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator Delrin
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AG

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Mini RG59 White AG 75 3.6 PEF 1.9 CCS 0.41 1/0.41 Foil and Braid

Performance

Performance Data 10 005 A0 AG PD
Return Loss
1GHz -23db
1.5GHz -15db
2GHz -15db

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 5.41mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Rotary Cable Stripper 96-312X
BNC Plug Insertion And Extractor Tool 96-2208
Black Strain Relief Boot 97-801-BK-04
White Strain Relief Boot 97-801-WH-04

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 A0 AG REV A00 2
Assembly Process AP001
Performance Data 10 005 A0 AG PD
