10-005-A6-BB

Shop online for RF Connectors and Cable Assemblies

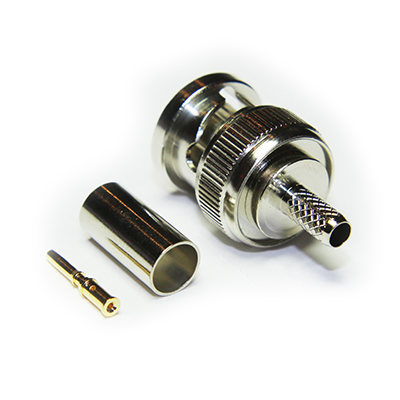

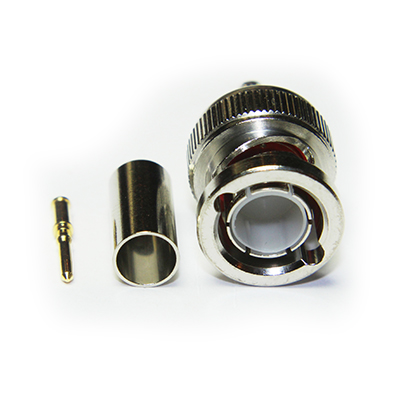

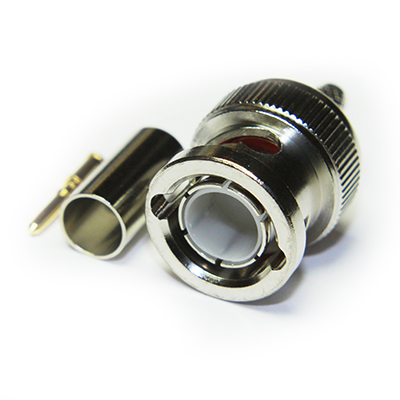

BNC Straight Crimp / Crimp Plug

BNC 75 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for BT2002 or similar cables in group BB

From £0.61 each ex VAT
1-9 = £0.97 | 10-24 = £0.82 | 25-49 = £0.81 | 50-99 = £0.69 | +100 = £0.61

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 1GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	150N min
Weight	10.6g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	Delrin
Bayonet Cap	Zinc
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group BB

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
BT2002	BB	75	5.1	PEF	2.4	BC	0.63	7/0.21	Double Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	1.72 mm Hex	96-336A
Outer Contact	5.18mm Hex	96-HTS-43

Accessories

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-HTS-43
BNC Plug Insertion And Extractor Tool	96-2208

Downloads

Interface Dimensions	C-75-Ohm-BNC
Stripping Dimensions	SD01
Data Sheet	10-005-A6-BB REV A00-3
Assembly Process	AP001
