BNC Straight Crimp / Crimp Plug

10-005-B3-EH

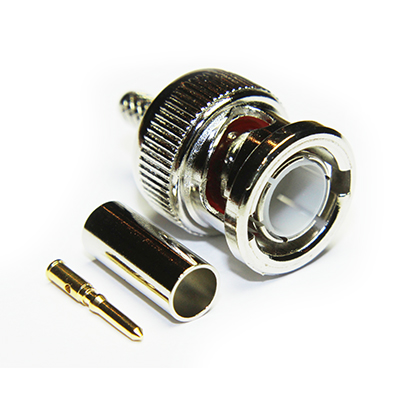

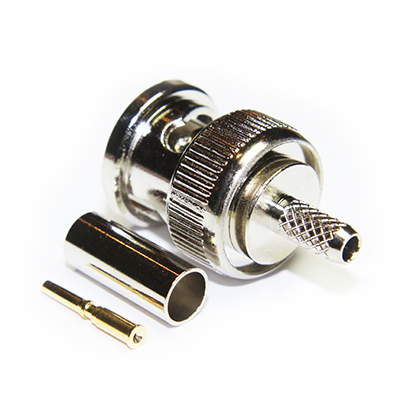

BNC 75 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for flex 3-75 or similar cables in group EH.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 100N min
Weight 9.7g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group EH

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Flex 3 EH 75 3.6 PE 2.3 BC 0.4 1/0.40 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.07mm 96-336J
Outer Contact 4.52mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-336J
Outer Contact Crimp Tool 96-336J
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Assembly Process AP001
