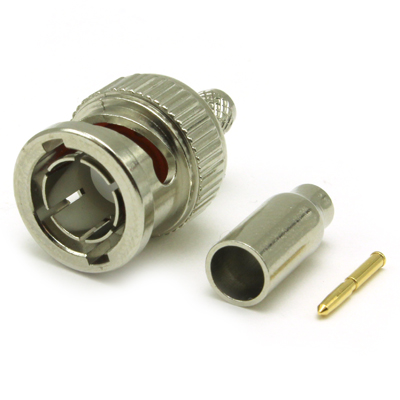

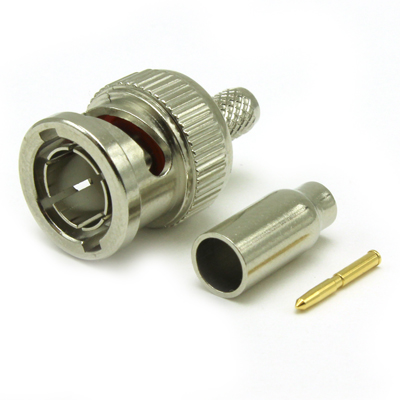

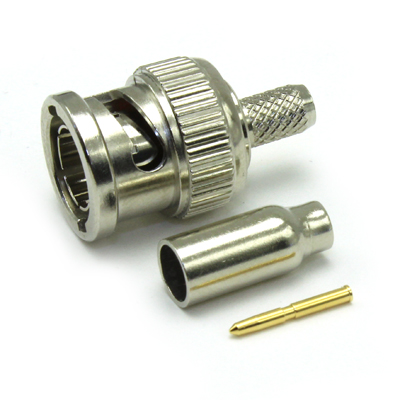

BNC High Definition Crimp/Crimp Plug, True 75ohm (3G)

10-005-B36-1-AB

BNC True 75 ohm straight crimp plug, for applications up to 4.5GHz. Designed to have a return loss better than -24db at 4.5 GHz, Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG179 or similar cables in group AB.
Designed to use preferred 5.41mm Hex Crimp Tooling

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -24 dB @ 4.5GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 11.51g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 179DT AB 75 2.54 PEF 1.42 BC 0.31 1/0.31 Foil and Braid
RG179 B/U AB 75 2.54 PTFE 1.6 SCCS 0.3 7/0.1 Copper Braid
RG179 Solid AB 75 2.54 Foam 1.6 SCSC 0.3 1/0.3 Copper Braid
RG179 Stranded AB 75 2.54 Foam 1.6 SCSC 0.3 7/0.1 Copper Braid
RG187 AB 75 2.67 PTFE 1.52 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data 10 005 B36 AB PD
Return Loss
1.5 GHz -27.5 db
3 GHz -26.3 db
4.5 GHz -24.1 db
6 GHz -15.5 db

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.07mm 96-HTS-75A
Outer Contact 5.41mm Hex 96-HTS-75A

Accessories

Centre Contact Crimp Tool 96-HTS-75A
Outer Contact Crimp Tool 96-HTS-75A
Rotary Cable Stripper 96-312X
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 B36 1 AB REV A00 1
Assembly Process AP001
Performance Data 10 005 B36 AB PD
