BNC High Definition Crimp/Crimp Plug, True 75ohm SMPTE 424M (3G)

10-005-B36-AB

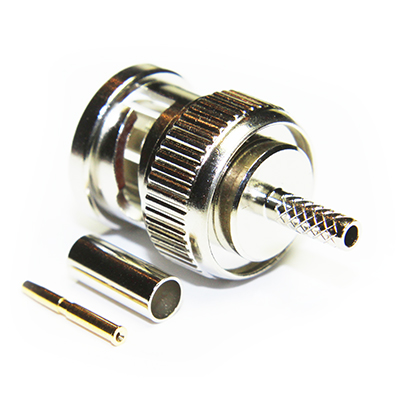

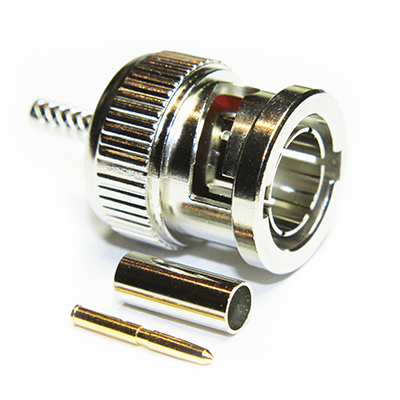

BNC True 75 ohm straight crimp plug, for applications up to 4.5GHz. Designed to have a return loss better than -24db at 4.5 GHz, Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG179 or similar cables in group AB.

From £0.90 each ex VAT
1-9 = £1.20 |  10-24 = £1.15 |  25-49 = £1.10 |  50-99 = £0.96 |  +100 = £0.90

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -24 dB @ 4.5GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 60N min
Weight 9.1g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 179DT AB 75 2.54 PEF 1.42 BC 0.31 1/0.31 Foil and Braid
RG179 B/U AB 75 2.54 PTFE 1.6 SCCS 0.3 7/0.1 Copper Braid
RG179 Solid AB 75 2.54 Foam 1.6 SCSC 0.3 1/0.3 Copper Braid
RG179 Stranded AB 75 2.54 Foam 1.6 SCSC 0.3 7/0.1 Copper Braid
RG187 AB 75 2.67 PTFE 1.52 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data 10 005 B36 AB PD
Return Loss
1.5 GHz -27.5 db
3 GHz -26.3 db
4.5 GHz -24.1 db
6 GHz -15.5 db

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 0.95mm 96-HTS-43
Outer Contact 3.25mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-HTS-43
Outer Contact Crimp Tool 96-HTS-43
Rotary Cable Stripper 96-312X
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 B36 AB REV C01 3
Assembly Process AP001
Performance Data 10 005 B36 AB PD
