10-005-B36-AI

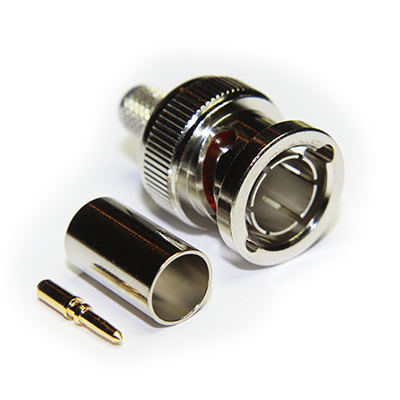

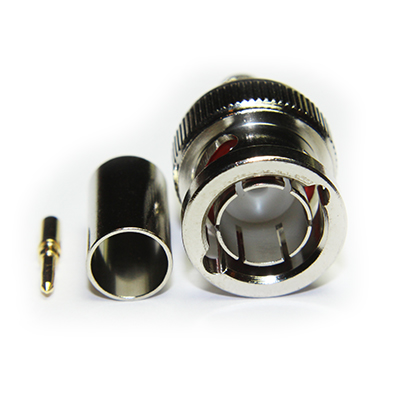

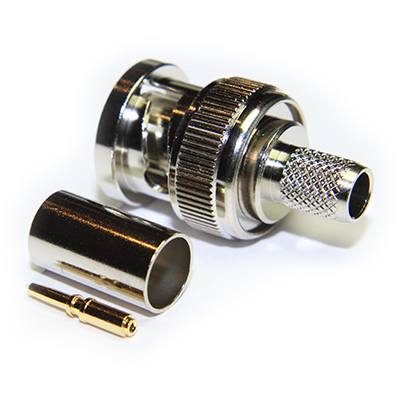

BNC High Definition Crimp/Crimp Plug, True 75ohm (3G)

BNC True 75 ohm straight crimp plug, for applications up to 3GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG59 or similar cables in group AI.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 3GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-22.89 dB @ 3GHz
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	120N min
Weight	10.5g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Bayonet Cap	Zinc
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group AI

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX30	AI	93	6.15	PE	3.71	BCCS	0.64	1/0.64	CopperBraid
KX52	AI	75	-	-	-	-	-	-	-
KX6	AI	75	6.1	PE	3.7	BC	0.6	7/0.20	CopperBraid
RG59	AI	75	6.15	PE	3.71	BCCS	0.57	1/0.57	CopperBraid
RG59U	AI	75	6.15	PE	3.71	BCCS	0.57	1/0.57	CopperBraid
RG62	AI	93	6.15	PE	3.71	BCCS	0.64	1/0.64	CopperBraid
URM104	AI	75	6	PE	-	-	0.64	1/0.64	CopperBraid
URM70	AI	75	5.8	PE	3.25	TC	0.6	7/0.20	CopperBraid

Performance

Performance Data

10-005-B36-AI PD

Return Loss
1GHz	-34.5dB
2GHz	-25.4dB
3GHz	-20.9dB
4.5GHz	-16.4dB

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	1.72 mm Hex	96-336A
Outer Contact	6.5mm Hex	96-336A

Accessories

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-336A
Rotary Cable Stripper	96-312B
BNC Plug Insertion And Extractor Tool	96-2208
Black Strain Relief Boot	97-800-BK-06
Blue Strain Relief Boot	97-800-BU-06
Red Strain Relief Boot	97-800-RE-06
Green Strain Relief Boot	97-800-GN-06
Yellow Strain Relief Boot	97-800-YE-06
Brown Strain Relief Boot	97-800-BN-06
Grey Strain Relief Boot	97-800-GY-06
Orange Strain Relief Boot	97-800-OR-05
White Strain Relief Boot	97-800-WT-06
Violet Strain Relief Boot	97-800-VI-06

Downloads

Interface Dimensions	C-75-Ohm-BNC
Stripping Dimensions	SD01
Data Sheet	10-005-B36-AI REV B01-2
Assembly Process	AP001
Performance Data	10-005-B36-AI PD
