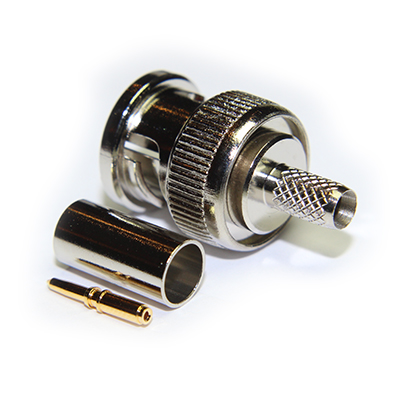

BNC High Definition Crimp/Crimp Plug, True 75ohm (3G)

10-005-B36-BF

BNC True 75 ohm straight crimp plug, for applications up to 3GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RA 7000 or similar cables in group BF.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 3GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 220N min
Weight 8.6g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group BF

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
BT7000 BF 75 4.55 PEF 2.8 BC 0.61 1/0.61 Foil and Braid
RA7000 BF 75 4.55 PEF 2.8 BC 0.61 1/0.61 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 5.18mm Hex 96-HTS-43

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-HTS-43
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10-005-B36-BF REV A02-2
Assembly Process AP001
