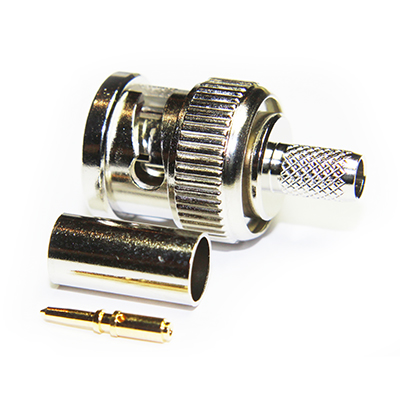

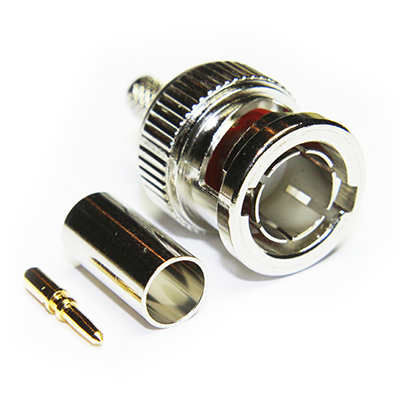

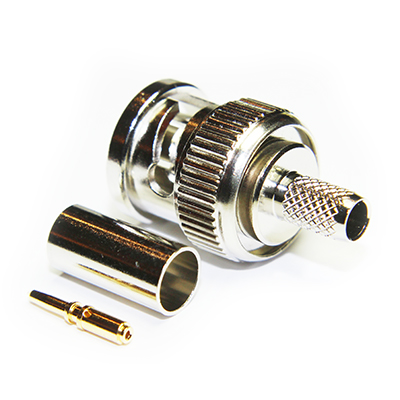

BNC High Definition Crimp/Crimp Plug, True 75ohm (3G)

10-005-B36-BH

BNC True 75 ohm straight crimp plug, for applications up to 3GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for all cables in group BH

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -12 dB @ 6GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 9.42g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group BH

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
735A BH 75 3.28 PEF 1.96 SPC 0.41 1/0.41 Foil and Braid
Belden 735C1 BH 75 3.4 PEF 1.96 SPC 0.43 1/0.43 Foil and Braid
Canford SDV-M BH 75 3.1 FHPE 1.9 BC 0.41 1/0.41 Foil and Braid
CT1320 BH 75 3.28 PEF 1.96 SPC 0.41 1/0.41 Foil and Braid
Draka 0.41/1.9 AF BH 75 3.1 PEF 1.9 BC 0.41 1/0.41 Foil and Braid

Performance

Performance Data 10 005 B36 BH PD
Return Loss
1GHz --37.79dB
2GHz -28.58dB
3GHz -23.94dB
4.5GHz -18.1dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336J
Outer Contact 4.52 mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-336J
Outer Contact Crimp Tool 96-336J
BNC Plug Insertion And Extractor Tool 96-2208
Black Strain Relief Boot 97-800-BK-05
Blue Strain Relief Boot 97-800-BU-05
Red Strain Relief Boot 97-800-RE-05
Green Strain Relief Boot 97-800-GN-05
Yellow Strain Relief Boot 97-800-YE-05
Brown Strain Relief Boot 97-800-BN-05
Grey Strain Relief Boot 97-800-GY-05
Orange Strain Relief Boot 97-800-OR-05
White Strain Relief Boot 97-800-WT-05
Violet Strain Relief Boot 97-800-VI-05

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 B36 BH REV A00 1
Assembly Process AP001
Performance Data 10 005 B36 BH PD
