10-005-B36-EF1

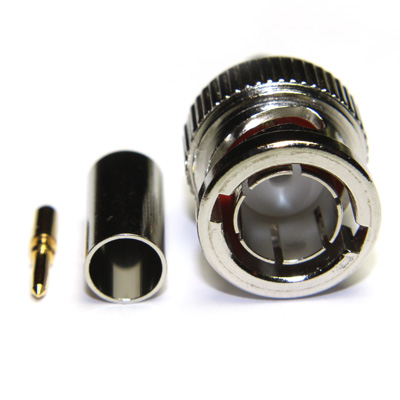

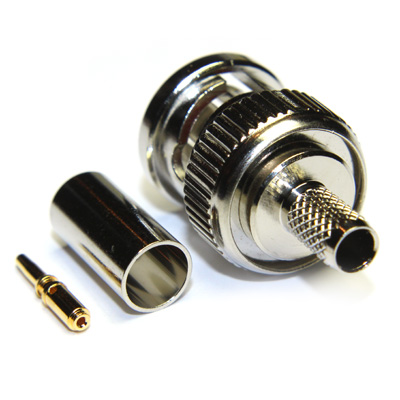

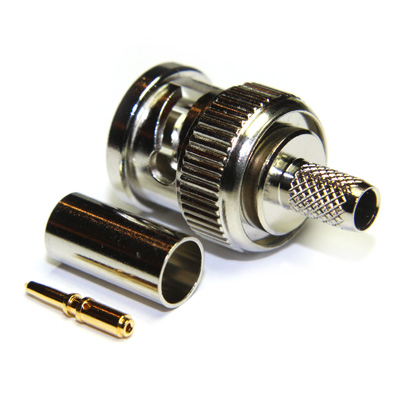

BNC High Definition Crimp/Crimp Plug, True 75ohm SMPTE 424M (3G)

BNC True 75 ohm straight crimp plug, Using Standard US crimp sizes for applications up to 4.5GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for all cables in group EF.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 4.5GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-12 dB @ 6GHz
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	100N min
Weight	11.67g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Bayonet Cap	Zinc
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group EF

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 1855A	EF	75	4.04	PEF	2.59	BC	0.58	1/0.58	Foil and Braid
Belden 1865A	EF	75	3.81	PEF	2.39	BC	0.54	1/0.54	Foil and Braid
Belden 4855ANH	EF	75	4.04	FHPE	2.59	BC	0.58	1/0.58	Foil and Braid
Belden 4855P	EF	75	4.04	FHPE	2.59	BC	0.58	1/0.58	Foil and Braid
Belden 4855R	EF	75	4.04	FHPE	2.59	BC	0.58	1/0.58	Foil and Braid
Canare L-2.5CFB	EF	75	4.0	PEF	2.4	BC	0.50	1/0.50	Foil and Braid
Canare L-2.5CHD	EF	75	4.2	PEF	2.59	BC	0.59	1/0.59	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Return Loss
3GHz	-20dB
6GHz	-12dB
12GHz	-5dB
18GHz	-13dB

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	1.07 sq mm Hex	96-HTS-77
Outer Contact	4.52 mm Hex	96-HTS-77

Accessories

Centre Contact Crimp Tool	96-HTS-77
Outer Contact Crimp Tool	96-HTS-77
BNC Plug Insertion And Extractor Tool	96-2208

Downloads

Interface Dimensions	C-75-Ohm-BNC
Stripping Dimensions	SD01
Data Sheet	10 005 B36 EF1 REV A00 1
Assembly Process	AP001
