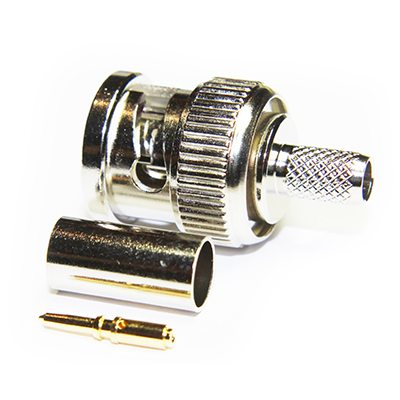

BNC High Definition Crimp/Crimp Plug, True 75ohm SMPTE 424M (3G)

10-005-B36-FB1

BNC True 75 ohm straight crimp plug, Using Standard US crimp sizes, for applications up to 3GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for Belden 1505A or similar cables in group FB.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 12.42g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group FB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 1505A FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.7 BC 0.81 1/0.81 Bonded Foil and Braid
Belden 4505ANH FB 75 5.99 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 4505R FB 75 5.94 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Belden 70081NH FB 75 5.92 PEF 3.68 BC 0.81 1/0.81 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Bryant BD SD50A FB 75 6.1 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Canare L-4CFB FB 75 6.1 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Canare L-4CHD FB 75 6.1 PEF 3.68 BC 0.82 1/0.82 Foil and Braid
Conducfil 14472 FB 75 5.9 PEF 3.7 BC 0.8 1/0.80 Foil and Braid
Draka 0.8/3.7AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Draka HD PRO 0.8/3.7 AF FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Image 720 FB 75 5.9 PEF 3.7 BC 0.8 1/0.8 Foil and Braid
Percon VK6 FB 75 6 PEF 3.7 BC 0.81 1/0.81 Foil and Braid
Percon VK66 FB 75 6.14 PEF 3.7 BC 0.97 7/0.29 Double Copper Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
1GHz -37.8dB
2GHz -28.7dB
4.5GHz -19.3dB
6GHz -14.7dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.07 mm Hex 96-HTS-77
Outer Contact 6.48mm Hex 96-HTS-77

Accessories

Centre Contact Crimp Tool 96-HTS-77
Outer Contact Crimp Tool 96-HTS-77
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 B36 FB1 REV A00 1
Assembly Process AP001
