10-005-B36-FD

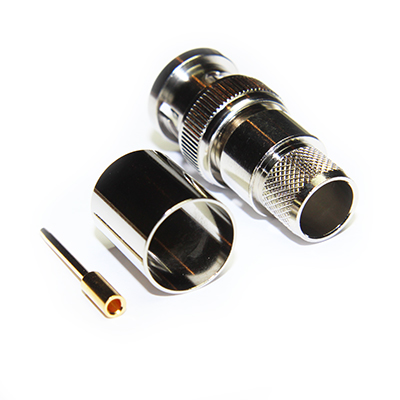

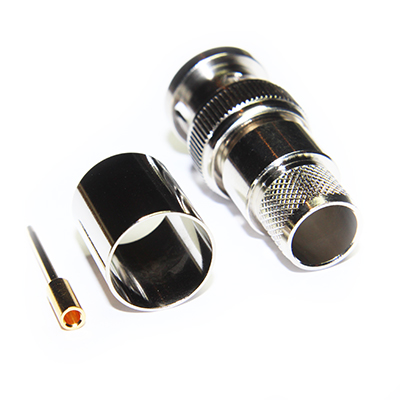

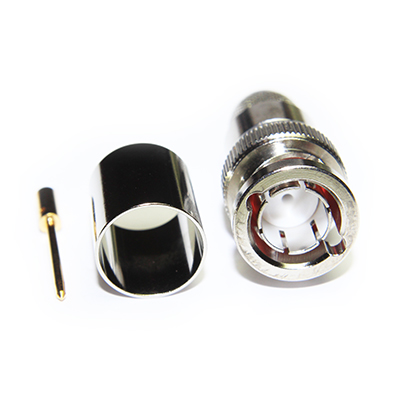

BNC High Definition Crimp/Crimp Plug, True 75ohm

BNC 75 ohm straight crimp plug, for applications up to 3GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for Belden 7731A or similar cables in group FD.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 3GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-23.6 dB @ 3GHz
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	150N min
Weight	15.6g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Bayonet Cap	Zinc
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Suitable for Cables in Group FD

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 4731R	FD	75	10.16	PEF	7.11	BC	1.63	1/1.63	Foil/Braid/Foil
Belden 7731A	FD	75	10.2	PEF	7.11	BC	1.63	1/1.63	Foil and Braid
Belden 9292	FD	75	10.28	PEF	7.11	BC	1.62	1/1.62	Foil and Braid
Bryant BD SD70	FD	75	10.1	PEF		BC	1.63	1/1.63	Foil and Braid
Bryant BD SD70	FD	75	10.1	PEF		BC	1.63	1/1.63	Foil and Braid
Canford SDV-HD	FD	75	10.2	FHPE	7.5	BC	1.63	1/1.63	Foil and Braid
Canford SDV-HD-LFH	FD	75	10.2	FHPE	7.5	BC	1.63	1/1.63	Foil and Braid
Draka 1.6/7.3 AF	FD	75	10.3	PEF	7.3	BC	1.6	1/1.6	Foil and Braid
Image 2000	FD	75	10.3	PEF	7.3	BC	1.6	1/1.6	Foil and Braid

Performance

Performance Data

10-005-B36-FD PD

Return Loss
1GHz	-39.7dB
2GHz	-31.7dB
3GHz	-23.6dB

Assembly

Assembly Process	AP001
Stripping Dimensions	SD01
Centre Contact	2.54mm Hex	96-336K
Outer Contact	10.9mm Hex	96-336K

Accessories

Centre Contact Crimp Tool	96-336K
Outer Contact Crimp Tool	96-336K
BNC Plug Insertion And Extractor Tool	96-2208

Downloads

Interface Dimensions	C-75-Ohm-BNC
Stripping Dimensions	SD01
Data Sheet	10 005 B36 FD REV A00 1
Assembly Process	AP001
Performance Data	10-005-B36-FD PD
