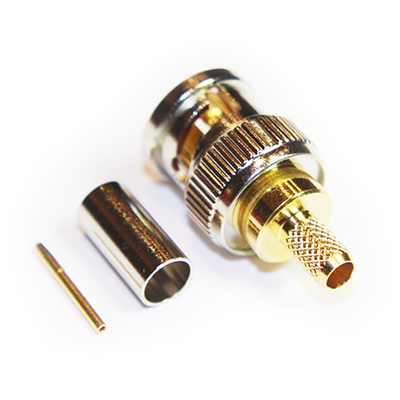

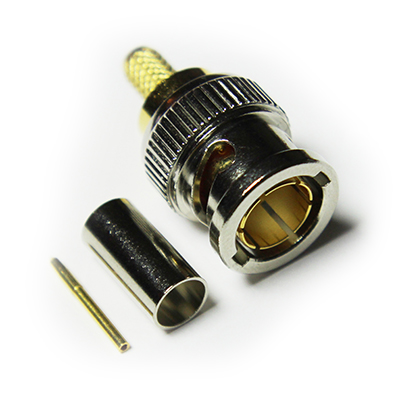

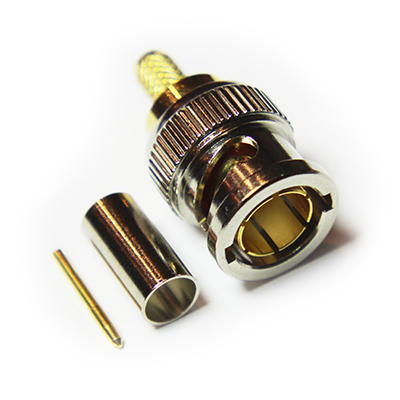

BNC Ultra HD 12G Straight Crimp / Crimp Plug True 75 Ohm

10-005-D126-FA

Ultra HD 12G High Performance 75 ohm BNC crimp plug tested to meet the requirements of SMPTE ST 2081-1 & ST 2082-1 for use in 6G & 12G systems. With gold plated inner and outer contacts the contact and crimp sleeve are annealed to provide a robust and durable termination. Suitable for all cables in group FA.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -19 dB @ 12GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 10.1g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Gold
Bayonet Cap Plating Nickel
Pack Size 1

Suitable for Cables in Group FA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belcom EventSeries HD600 LSZH FireFighter FA 75 4.5 PEF 2.8 BC 0.65 1/0.65 Foil and Braid
Belden 1855ECH FA 75 4.6 Foam 2.9 BC 0.65 1/0.65 Foil and Braid
Belden 1855ENH FA 75 4.45 PEF 2.8 TC 0.6 1/0.6 Foil and Braid
Belden 4855ELW FA 75 4.47 Foam 2.89 SCSC 0.66 1/0.66 Foil and Braid
Belden 70080NH FA 75 4.45 PEF 2.9 BC 0.65 1/0.65 Foil and Braid
Belden H123A02 FA 75 4.3 PEF 2.9 CU 0.65 1/0.65 Foil and Braid
Bryant BD SD01 FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Bryant BD SD01 FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Canford SDV FA 75 4.5 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Canford SDV-LFH FA 75 4.6 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Canford SDV-UHD-LFH FA 75 4.5 PEF 2.8 BC 0.7 1/0.7 Foil and Braid
Canford SDV-X-LFH FA 75 4.5 PEF 2.8 BC 0.64 1/0.64 Foil and Braid
Conducfil 9890 FA 75 4.5 PEF 2.8 BC 0.6 1/0.60 Foil and Braid
Draka 0.6/2.8AF FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Draka HD PRO 0.6/2.8AF FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid
Image 360 FA 75 4.6 PEF 2.95 BC 0.6 1/0.6 Foil and Braid
Percon VK4 FA 75 4.4 PEF 2.6 BC 0.57 1/0.57 Foil and Braid
Percon VK5 FA 75 4.5 PEF 2.8 BC 0.57 1/0.57 Foil and Braid
Percon VK50 Silver+ FA 75 4.5 PEF SC 0.57 1/0.57 Foil and Braid
Percon VK50 Silver+ FA 75 4.5 PEF SC 0.57 1/0.57 Foil and Braid
TACHII TCX-2.8CHD FA 75 4.4 PEF 2.7 BC 0.6 1/0.6 Foil and Braid
Van Damme SDI Vision FA 75 4.5 PEF 2.8 BC 0.6 1/0.6 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
3.0 GHz -29.dB
6.0 GHz -26dB
9.0 GHz -24dB
12.0 GHz -19dB

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 0.95 mm sq 96-HTS-75A
Outer Contact 5.41mm Hex 96-HTS-75A

Accessories

Centre Contact Crimp Tool 96-HTS-75A
Outer Contact Crimp Tool 96-HTS-75A
BNC Plug Insertion And Extractor Tool 96-2208
Black Strain Relief Boot 97-800-BK-05
Blue Strain Relief Boot 97-800-BU-05
Red Strain Relief Boot 97-800-RE-05
Green Strain Relief Boot 97-800-GN-05
Yellow Strain Relief Boot 97-800-YE-05
Brown Strain Relief Boot 97-800-BN-05
Grey Strain Relief Boot 97-800-GY-05
Orange Strain Relief Boot 97-800-OR-05
White Strain Relief Boot 97-800-WT-05
Violet Strain Relief Boot 97-800-VI-05

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 D126 FA REV B00 1
Assembly Process AP001
