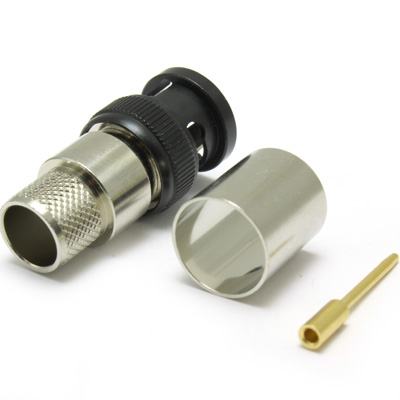

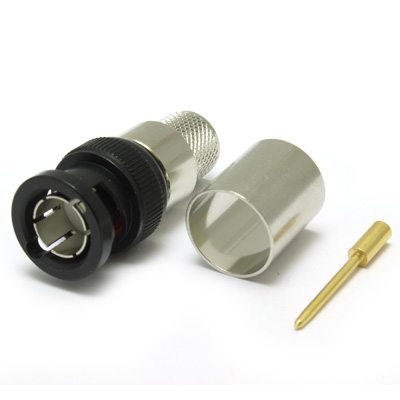

10-005-T66-FD - BNC High Definition Crimp/Crimp Plug, True 75ohm (6G)

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 6GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-20.37 dB @ 6GHz
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	150N min
Weight	15.6g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Bayonet Cap	Brass
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Bayonet Cap Plating	Black Nickel
Pack Size	100

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 4731R	FD	75	10.16	PEF	7.11	BC	1.63	1/1.63	Foil/Braid/Foil
Belden 7731A	FD	75	10.2	PEF	7.11	BC	1.63	1/1.63	Foil and Braid
Belden 9292	FD	75	10.28	PEF	7.11	BC	1.62	1/1.62	Foil and Braid
Bryant BD SD70	FD	75	10.1	PEF		BC	1.63	1/1.63	Foil and Braid
Bryant BD SD70	FD	75	10.1	PEF		BC	1.63	1/1.63	Foil and Braid
Canford SDV-HD	FD	75	10.2	FHPE	7.5	BC	1.63	1/1.63	Foil and Braid
Canford SDV-HD-LFH	FD	75	10.2	FHPE	7.5	BC	1.63	1/1.63	Foil and Braid
Draka 1.6/7.3 AF	FD	75	10.3	PEF	7.3	BC	1.6	1/1.6	Foil and Braid
Image 2000	FD	75	10.3	PEF	7.3	BC	1.6	1/1.6	Foil and Braid

Performance Data

Centre Contact Crimp Tool	96-336K
Outer Contact Crimp Tool	96-336K
BNC Plug Insertion And Extractor Tool	96-2208
