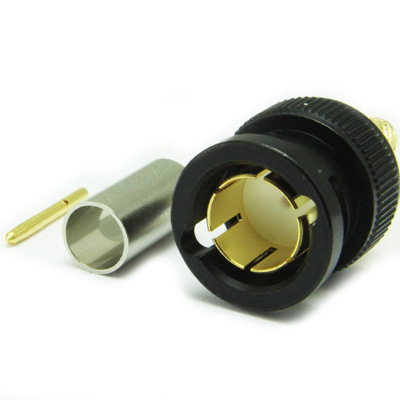

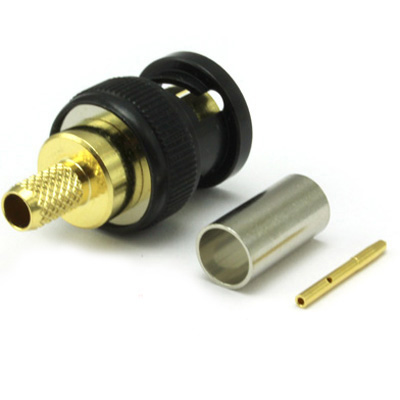

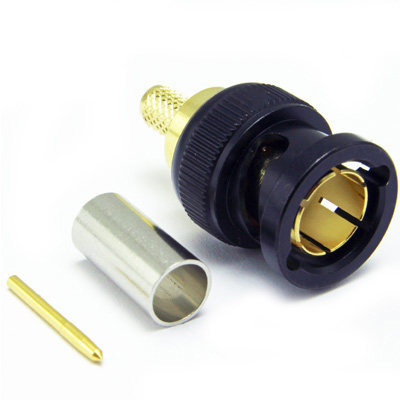

'KORUS' Ultra HD 12G BNC Straight Crimp / Crimp Plug True 75 Ohm

10-005-W126-EF1

Ultra HD High Performance ‘KORUS’ 12G True 75 ohm BNC with black finished body and gold plated inner and outer contact. This straight crimp plug gives stable low loss performance to beyond 12GHz and is ideal for 4K / Ultra HD broadcast applications. Both contact and crimp sleeve are annealed to provide a robust and durable termination Using Standard US Crimp Sizes. Suitable for all cables in group EF
**Now Tested to 18GHz**

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -20db @ 12GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 11.72g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Brass
Centre Contact Plating Gold
Outer Contact Plating Gold
Bayonet Cap Plating Black Nickel
Pack Size 1

Suitable for Cables in Group EF

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 1855A EF 75 4.04 PEF 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 1865A EF 75 3.81 PEF 2.39 BC 0.54 1/0.54 Foil and Braid
Belden 4855ANH EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 4855P EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Belden 4855R EF 75 4.04 FHPE 2.59 BC 0.58 1/0.58 Foil and Braid
Canare L-2.5CFB EF 75 4.0 PEF 2.4 BC 0.50 1/0.50 Foil and Braid
Canare L-2.5CHD EF 75 4.2 PEF 2.59 BC 0.59 1/0.59 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss :
3 GHz -27.db
6 GHz -21.db
12 GHz -20.db
18 GHz -20db

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.07mm sq 96-HTS-77
Outer Contact 4.52mm Hex 96-HTS-77

Accessories

Centre Contact Crimp Tool 96-HTS-77
Outer Contact Crimp Tool 96-HTS-77

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 W126 EF1 REV C00 1
Assembly Process AP001
