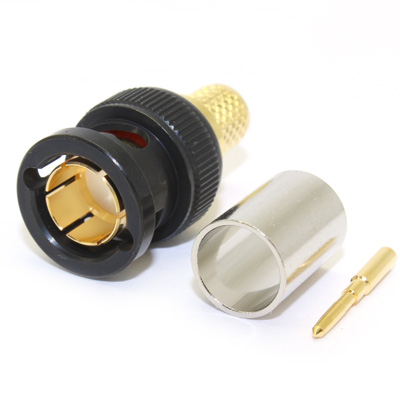

'KORUS' Ultra HD 12GHz BNC Crimp Plug True 75 Ohm

10-005-W126-FC-BLK-100

Ultra HD High Performance ‘KORUS’ 12GHz True 75 ohm BNC with black finished body and gold plated inner and outer contact. This straight crimp plug gives stable low loss performance to beyond 12GHz and is ideal for 4K / Ultra HD broadcast applications. Both contact and crimp sleeve are annealed to provide a robust and durable termination. Suitable for cables in group FC
** Now Tested to 18 GHz **

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -35 db @ 12 GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 150N min
Weight 11.78g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Brass,Black Plated
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 100

Suitable for Cables in Group FC

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
70082NH FC 75 6.96 PEF 4.57 BC 1.02 1/1.02 Bonded Foil and Braid
Belcom EventSeries HD1000 LSZH FireFighter FC 75 6.8 PEF 4.8 BC 1 1/1.0 Foil and Braid
Belden 1694A FC 75 6.96 FHPE 4.57 BC 1.016 1/1.016 FoilandBraid
Belden 1694F FC 75 7.01 PEF 4.57 BC 1.02 7/0.36 Double Copper Braid
Belden 1695A FC 75 5.82 PEF 4.32 BC 1.02 1/1.02 Foil and Braid
Belden 4694ANH FC 75 6.95 PEF 4.57 SPC 1.02 1/1.02 Foil and Braid
Belden 4694F FC 75 7.0 FHPE 4.57 BC 1.02 1/1.02 Double Copper Braid
Belden 4694P FC 75 5.82 PEF 4.3 SPC 1.02 1/1.02 Foil and Braid
Belden 4694R FC 75 6.98 PEF 4.57 BC 1.02 1/1.02 Copper Braid
Belden H124Co2 FC 75 7.0 Foam 4.4 BC 1.0 1/1.0 Bonded Foil and Braid
Bryant BD SD10F FC 75 7 PEF 4.57 BC 1.1 7/0.36 Double Copper Braid
Bryant BD SD11 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Bryant BD SD11 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Canare L-5CHD FC 75 7.0 PEF 4.57 BC 1.02 1/1.02 Foil and Braid
Canford SDV-F FC 75 6.8 FHPE 4.8 BC 1 19/0.2 Foil and Braid
Canford SDV-L FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-LFH FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-SR FC 75 6.8 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Canford SDV-L-X-LFH FC 75 7 FHPE 4.8 BC 1 1/1.0 Foil and Braid
Conducfil 13653 FC 75 6.8 PEF 4.45 BC 1.02 1/1.02 Foil and Braid
Draka 1.0/4.8 AF FC 75 7 PEF 4.8 BC 1 1/1.0 Foil and Braid
Draka HD PRO 1.0/4.8 AF FC 75 7 PEF 4.8 BC 1 1/1.0 Foil and Braid
Draka HD PRO FLEX 1.0L/4.8 AF Dz FC 75 7 FHPE 4.8 BC 1 7/0.32 Double Copper Braid
Image 1000 FC 75 6.8 PEF 4.8 BC 1 1/1.0 Foil and Braid
Percon VK7 FC 75 7 PEF 4.7 BC 1.02 1/1.02 Foil and Braid
Percon VK70 ENH FC 75 7.1 PEF 4.7 BC 1.02 1/1.02 Foil and Braid
Percon VK77 FC 75 7 PEF 4.7 BC 1.08 7/0.36 Double Copper Braid
TACHII TCX-4CHD FC 75 6.5 PEF 4.3 BC 1.05 1/1.05 Foil and Braid

Performance

Performance Data 10 005 W66 FC 12Ghzpd
Rteurn Loss
3 GHz -36. db
6 GHz -31. db
12 GHz -35. db
18 GHz -23. db

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-HTS-75A
Outer Contact 8.23mm Hex 96-HTS-75A

Accessories

Centre Contact Crimp Tool 96-HTS-75A
Outer Contact Crimp Tool 96-HTS-75A
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 W126 FC REV C00 1
Assembly Process AP001
Performance Data 10 005 W66 FC 12Ghzpd
