'KORUS' Ultra HD12G BNC Straight Crimp / Crimp Plug True 75 Ohm

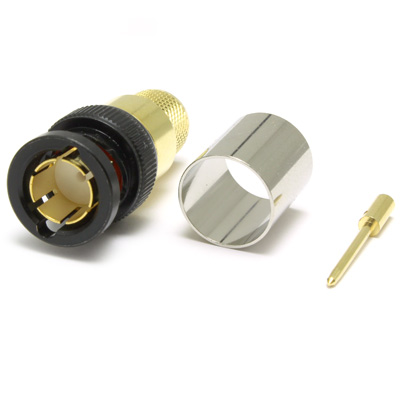

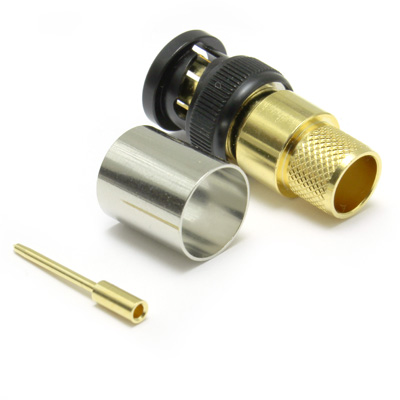

Ultra HD 12G High Performance ‘KORUS’ True 75 ohm BNC with black finished body and gold plated inner and outer contact. High Performance 75 ohm BNC crimp plug tested to meet the requirements of SMPTE ST 2081-1 & ST 2082-1 for use in 6G & 12G systems. Suitable for Belden 7731A or similar cables in group FD.

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 12GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Return Loss	-15 dB @ 12GHz
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	150N min
Weight	15.6g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Bayonet Cap	Brass
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group FD

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 4731R	FD	75	10.16	PEF	7.11	BC	1.63	1/1.63	Foil/Braid/Foil
Belden 7731A	FD	75	10.2	PEF	7.11	BC	1.63	1/1.63	Foil and Braid
Belden 9292	FD	75	10.28	PEF	7.11	BC	1.62	1/1.62	Foil and Braid
Bryant BD SD70	FD	75	10.1	PEF		BC	1.63	1/1.63	Foil and Braid
Bryant BD SD70	FD	75	10.1	PEF		BC	1.63	1/1.63	Foil and Braid
Canford SDV-HD	FD	75	10.2	FHPE	7.5	BC	1.63	1/1.63	Foil and Braid
Canford SDV-HD-LFH	FD	75	10.2	FHPE	7.5	BC	1.63	1/1.63	Foil and Braid
Draka 1.6/7.3 AF	FD	75	10.3	PEF	7.3	BC	1.6	1/1.6	Foil and Braid
Image 2000	FD	75	10.3	PEF	7.3	BC	1.6	1/1.6	Foil and Braid

Performance

Performance Data available on request, please contact COAX

Return Loss
3.0 GHz	-27 dB
6.0 GHz	-18 dB
12.0 GHz	-15 dB
18.0 GHz	-35 dB

Assembly

Assembly Process	AP019
Stripping Dimensions	SD01
Centre Contact	2.54mm Hex	96-336K
Outer Contact	10.9mm Hex	96-336K

Accessories

Centre Contact Crimp Tool	96-336K
Outer Contact Crimp Tool	96-336K
BNC Plug Insertion And Extractor Tool	96-2208

Downloads

Interface Dimensions	C-75-Ohm-BNC
Stripping Dimensions	SD01
Data Sheet	10 005 W126 FD REV C00 1
Assembly Process	AP019
