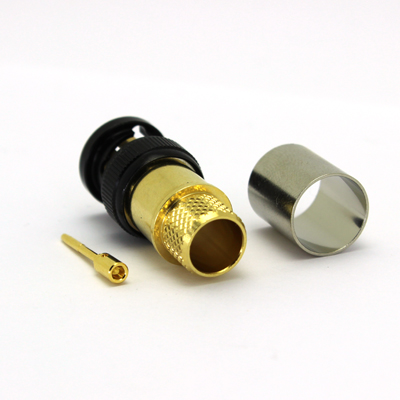

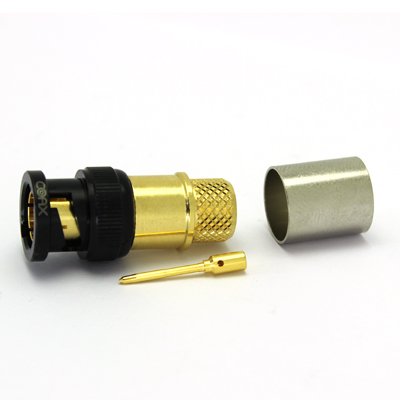

'KORUS' Ultra HD 12G BNC Crimp / Crimp Plug True 75 Ohm

10-005-W126-FS

Ultra HD High Performance ‘KORUS’ 12GHz True 75 ohm BNC with black finished body and gold plated inner and outer contact. This straight crimp plug gives stable low loss performance to beyond 12GHz and is ideal for 4K / Ultra HD broadcast applications. Both contact and crimp sleeve are annealed to provide a robust and durable termination. Suitable for all cables in group FS
**Now Tested to 18GHz**

Please contact COAX Direct for prices/availability

Has price | False

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -19db @ 12GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 15.20g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Brass
Centre Contact Plating Gold
Outer Contact Plating Gold
Bayonet Cap Plating Black Nickel
Pack Size 1

Suitable for Cables in Group FS

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Draka Outdoor Superflex UHD100 1.8s/7.7Dz FS 75 10.9 PEF 7.7 SPC 1.8 1/1.8 DoubleCopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 2.54mm Hex 96-336K
Outer Contact 10.9mm Hex 96-336K

Accessories

Centre Contact Crimp Tool 96-336K
Outer Contact Crimp Tool 96-336K
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10 005 W126 FS REV A00 2
Assembly Process AP001
