Back to BNC 75ohm Plugs

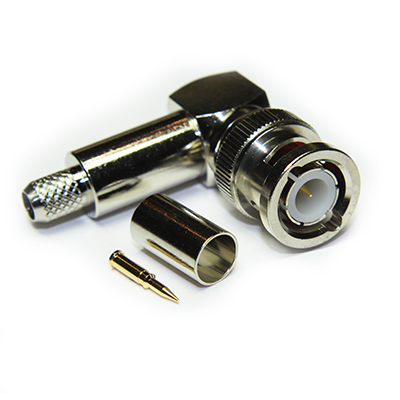

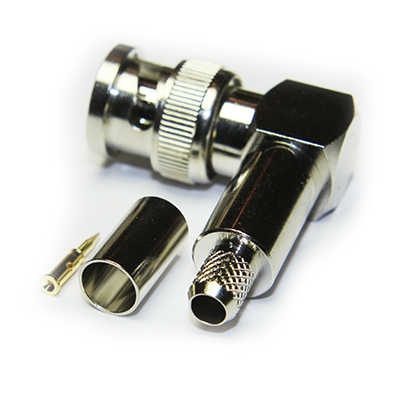

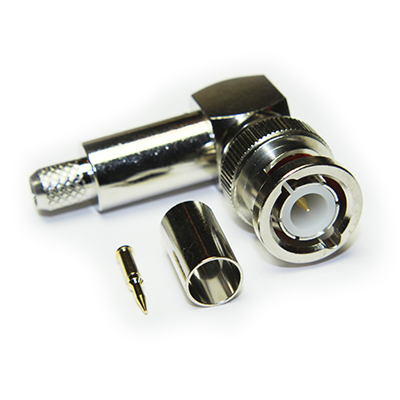

BNC Right Angle Crimp / Crimp Plug

10-104-A0-AI

BNC 75 ohm right angle full crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG59B/U or similar cables in group AI

From £3.56 each ex VAT
1-9 = £4.99 |  10-24 = £4.53 |  25-49 = £4.16 |  50-99 = £3.84 |  +100 = £3.56

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 120N min
Weight 29.55g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AI

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX30 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
KX52 AI 75 - - - - - - -
KX6 AI 75 6.1 PE 3.7 BC 0.6 7/0.20 CopperBraid
RG59 AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG59U AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG62 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
URM104 AI 75 6 PE - - 0.64 1/0.64 CopperBraid
URM70 AI 75 5.8 PE 3.25 TC 0.6 7/0.20 CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP019
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.5mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Rotary Cable Stripper 96-312B

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10-104-AO-AI
Assembly Process AP019
