Coax Pack BNC Crimp / Crimp Plug for RG59 - 75 Ohm (1GHz)

Coax Pack 2

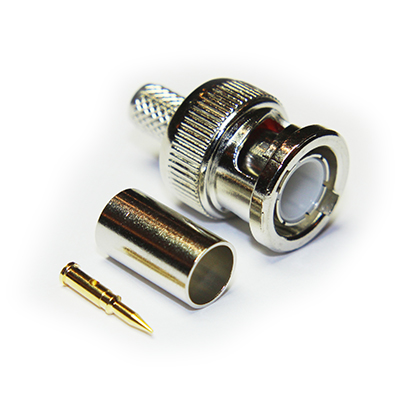

Coax Pack of 100 - BNC 75 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG59 or similar cables in group AI

From £88.71 each ex VAT
1-9 = £141.94 |  10-24 = £118.28 |  25-49 = £88.71 |  50-99 = £88.71 |  +100 = £88.71

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -27.2 dB @ 1GHz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 120N min
Weight 9.1g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator Delrin
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 100

Suitable for Cables in Group AI

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX30 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
KX52 AI 75 - - - - - - -
KX6 AI 75 6.1 PE 3.7 BC 0.6 7/0.20 CopperBraid
RG59 AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG59U AI 75 6.15 PE 3.71 BCCS 0.57 1/0.57 CopperBraid
RG62 AI 93 6.15 PE 3.71 BCCS 0.64 1/0.64 CopperBraid
URM104 AI 75 6 PE - - 0.64 1/0.64 CopperBraid
URM70 AI 75 5.8 PE 3.25 TC 0.6 7/0.20 CopperBraid

Performance

Performance Data 10-005-A0-AI PD

Assembly

Assembly Process AP001
Stripping Dimensions SD01
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.5mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Rotary Cable Stripper 96-312B
BNC Plug Insertion And Extractor Tool 96-2208
Black Strain Relief Boot 97-800-BK-06
Blue Strain Relief Boot 97-800-BU-06
Red Strain Relief Boot 97-800-RE-06
Green Strain Relief Boot 97-800-GN-06
Yellow Strain Relief Boot 97-800-YE-06
Brown Strain Relief Boot 97-800-BN-06
Grey Strain Relief Boot 97-800-GY-06
Orange Strain Relief Boot 97-800-OR-05
White Strain Relief Boot 97-800-WT-06
Violet Strain Relief Boot 97-800-VI-06

Downloads

Interface Dimensions C-75-Ohm-BNC
Stripping Dimensions SD01
Data Sheet 10-005-A0-AI REV A03-1
Assembly Process AP001
Performance Data 10-005-A0-AI PD
