Coax Pack BNC Crimp / Crimp Plug RG59 DB

Coax Pack 33

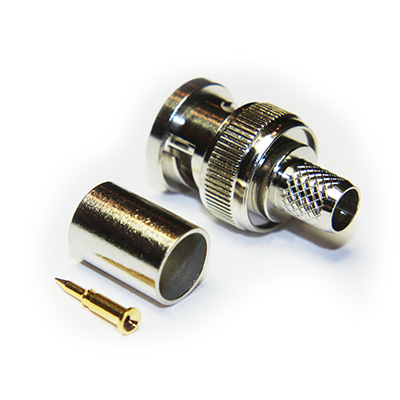

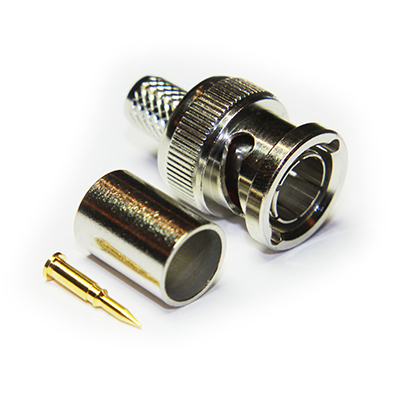

Coax Pack of 100 - BNC 75 ohm straight crimp plug, for applications up to 1GHz. Contact and crimp sleeve are annealed to provide a robust and durable termination, centre contact is gold plated. Suitable for RG59 DB (double braid) or similar cables in group AJ.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 120N min
Weight 10.8g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Brass
Outer Contact Brass
Insulator Delrin
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 100

Suitable for Cables in Group AJ

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG59DB AJ 75 6.15 PE 3.7 CCS 0.58 1/0.58 CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact 1.73mm Hex 96-336D
Outer Contact 8.23mm Hex 96-336D

Accessories

Centre Contact Crimp Tool 96-336D
Outer Contact Crimp Tool 96-336D
BNC Plug Insertion And Extractor Tool 96-2208

Downloads

Interface Dimensions C-75-Ohm-BNC
