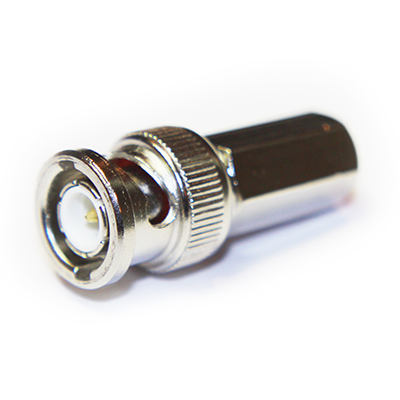

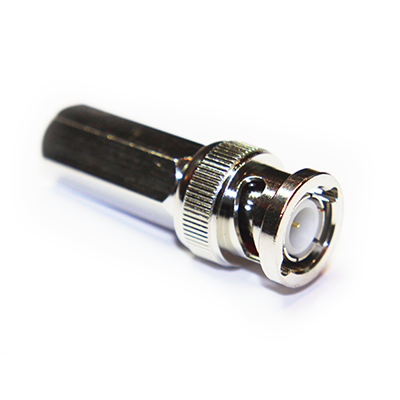

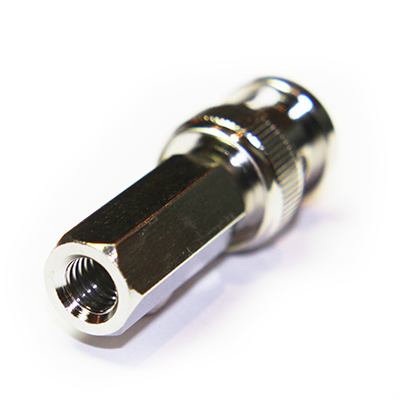

Coax Pack BNC Twist On RG59 (pack of 50)

Coax Pack of 50 - BNC 75 ohm 'Twist-On' straight plug for fast installation. No special tooling needed for a reliable connection up to 1GHz. With gold plated centre contact. Suitable for RG59 or similar cables in group AI.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 1GHz
Dielectric Withstand Voltage	1500 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 61169-8
RoHS Compliant	Yes
Centre Contact Termination	Easy Fit
Outer Contact Termination	Twist
Mating Cycles	250
Contact Retention	10N min
Cable Retention	120N min
Weight	18.15g
Mating Force	13.6N max
Un-Coupling Force	13.6N max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP64
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Bayonet Cap	Zinc
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	50

Suitable for Cables in Group AI

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX30	AI	93	6.15	PE	3.71	BCCS	0.64	1/0.64	CopperBraid
KX52	AI	75	-	-	-	-	-	-	-
KX6	AI	75	6.1	PE	3.7	BC	0.6	7/0.20	CopperBraid
RG59	AI	75	6.15	PE	3.71	BCCS	0.57	1/0.57	CopperBraid
RG59U	AI	75	6.15	PE	3.71	BCCS	0.57	1/0.57	CopperBraid
RG62	AI	93	6.15	PE	3.71	BCCS	0.64	1/0.64	CopperBraid
URM104	AI	75	6	PE	-	-	0.64	1/0.64	CopperBraid
URM70	AI	75	5.8	PE	3.25	TC	0.6	7/0.20	CopperBraid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact	Solder
Outer Contact	Twist - On

Accessories

Rotary Cable Stripper	96-312B
BNC Plug Insertion And Extractor Tool	96-2208

Downloads

Interface Dimensions

C-75-Ohm-BNC
