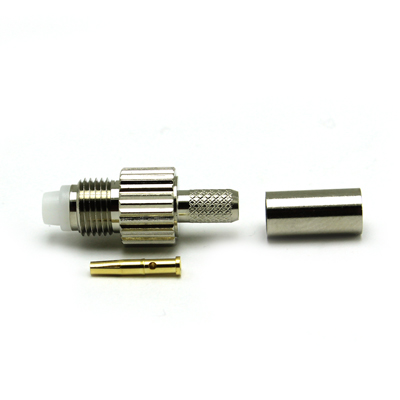

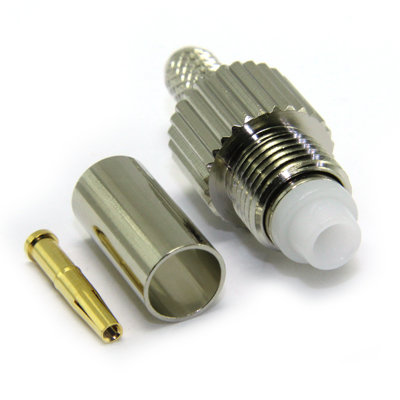

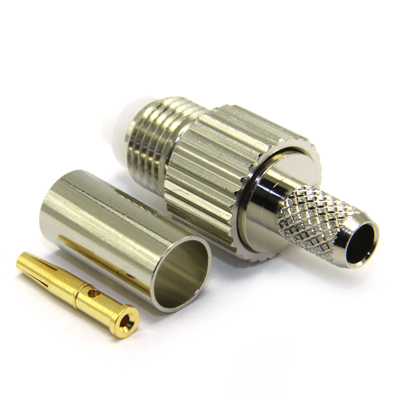

22-054-A3-AH - FME Crimp / Crimp Jack

Electrical Specification
Impedance	50 Ohm
Frequency Range	5GHz
Dielectric Withstand Voltage	1000 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	27N min
Cable Retention	100N min
Weight	7.56g
Mating Force	23Ncn
Un-Coupling Force	23Ncn
Recommended Coupling Nut Torque	60Ncm Max
Environmental Specification
Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Screw Coupling Nut	Brass
Centre Contact Plating	Gold
Outer Contact Plating	Nickel
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 7806R	AH	50	4.95	PEF	2.8	BC	0.94	1/0.94	Foil and Braid
Belden 9203	AH	50	4.95	PE	2.95	TC	0.9	19/0.18	Copper Braid
KX15	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
KX23	AH	50	5.1	PTFE	2.95	SC	1.02	7/0.34	Double Copper Braid
PSF 1/6	AH	50	5	PE	2.95	BC	0.96	7/0.32	Double Copper Braid
RG141	AH	50	4.83	PTFE	3	SCCS	0.94	1/0.94	Copper Braid
RG58	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
Times LMR®195	AH	50	4.95	PEF	2.79	BC	0.94	1/0.94	Foil and Braid
URM43	AH	50	5	PE	2.95	BC	0.9	1/0.9	Copper Braid
URM76	AH	50	5	PE	2.95	TC	0.96	7/0.32	Copper Braid
WBC195	AH	50	4.95	PE	2.79	BC	0.94	1/0.94	Foil and Braid

Performance Data available on request, please contact COAX

Centre Contact Crimp Tool	96-336A
Outer Contact Crimp Tool	96-336A
