FME Straight Bulkhead Crimp / Crimp Plug

22-204-A3-AD

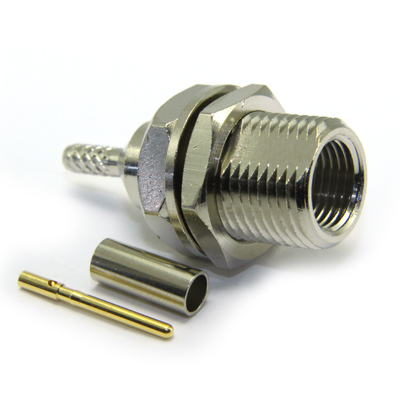

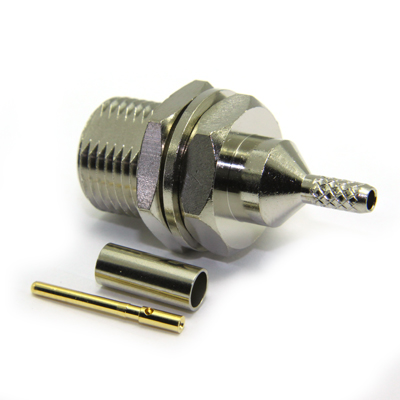

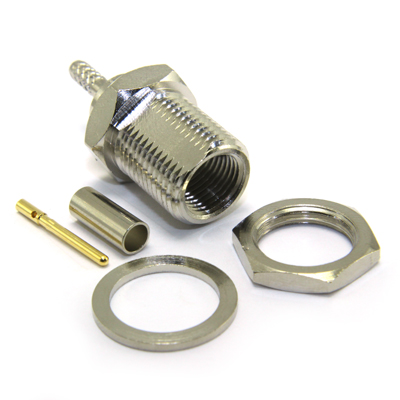

FME straight rear mount bulkhead full crimp Plug. With gold plated contact and nickel plated body. Contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG174 and similar cables in group AD.

From £1.62 each ex VAT
1-9 = £4.85 |  10-24 = £3.76 |  25-49 = £2.92 |  50-99 = £2.42 |  +100 = £1.62

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 2GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 100N min
Weight 14.83g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Recommended Coupling Nut Torque 60Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP54
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms
Jacket
O/D mm
Dielectric
Material
Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm
Centre Conductor
Stranding mm

Shielding
Outer Conductor

KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP001
Centre Contact 1.07mm Hex 96-336J
Outer Contact 3.25mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-336J
Outer Contact Crimp Tool 96-336J

Downloads

Interface Dimensions C-FME
Data Sheet 22 204 A3 AD REV A00 1
Assembly Process AP001
