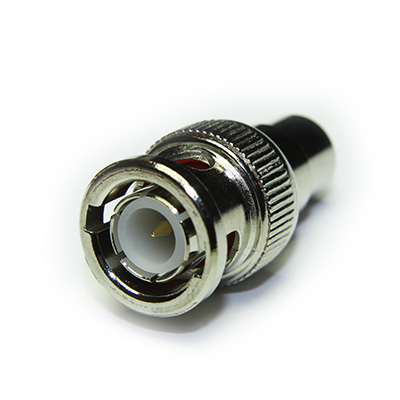

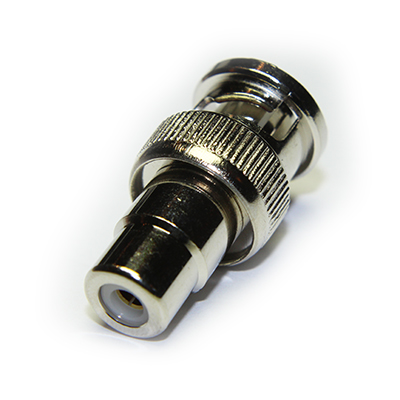

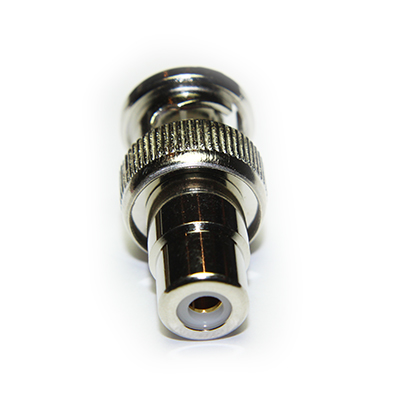

BNC Plug to Phono Jack Straight Adaptor

74-1017-511

Inter-Series adaptor for connection between different connector families. BNC Plug to Phono Jack Straight Adaptor

From £1.27 each ex VAT
1-9 = £1.78 |  10-24 = £1.59 |  25-49 = £1.44 |  50-99 = £1.35 |  +100 = £1.27

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 0-1 GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Weight 13.1g
Environmental Specification
Operating Temperature -35 to + 70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Accessories


Downloads

Interface Dimensions C-50-Ohm-BNC
Data Sheet 74-1017-511-REV-DA00-1
