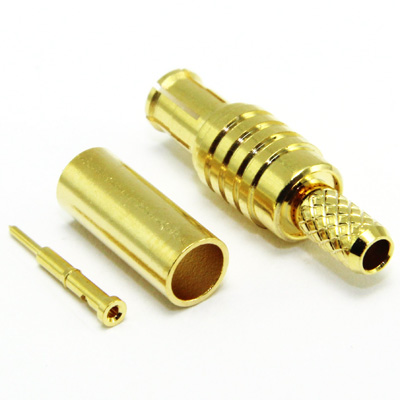

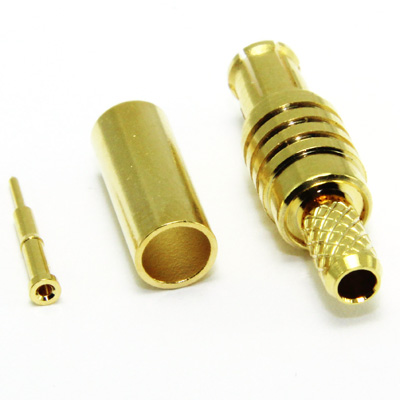

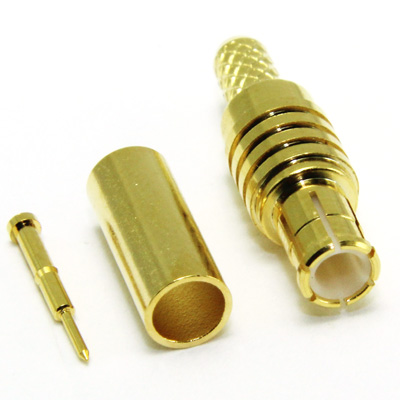

45-005-D3-AD - MCX Straight Crimp / Crimp Plug

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 6GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	1000 M-Ohm
Return Loss	-29.3 dB @ 6GHz
Mechanical Specification
Design Standard	CECC22220
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	100N min
Weight	1.59g
Mating Force	10N Max
Un-Coupling Force	20N Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Brass
Outer Contact	Phosphor Bronze
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
KX22	AD	50	2.5	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
KX3	AD	50	2.54	PE	1.5	CCS	0.48	7/0.16	Copper Braid
RG174	AD	50	2.79	PE	1.52	BCCS	0.48	7/0.16	Copper Braid
RG188	AD	50	2.67	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
RG316	AD	50	2.49	PTFE	1.52	SCCS	0.51	7/0.17	Copper Braid
Times LMR®100	AD	50	2.79	PE	1.52	BCCS	0.46	1/0.46	Foil and Braid
URM95	AD	50	2.3	PE	1.5	SCCS	0.46	1/0.46	Copper Braid
WBC100	AD	50	2.67	PE	1.52	CCS	0.46	1/0.46	Foil and Braid

Performance Data available on request, please contact COAX

Centre Contact Crimp Tool	96-AFM8
Outer Contact Crimp Tool	96-336J
