45-005-D6-AB

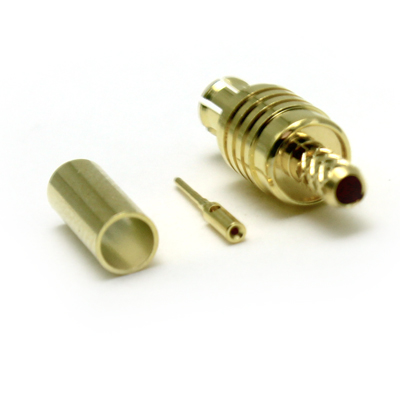

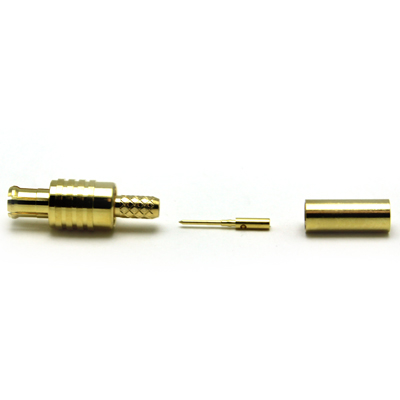

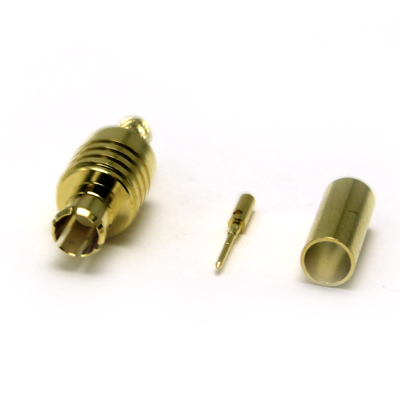

MCX 75 Ohm Straight Crimp / Crimp Plug

MCX 75 ohm full crimp straight plug with annealed crimp zones for lasting performance. Gold plated body and gold plated contact. Suitable for use with RG179 and similar cables in group AB.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 6GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	1000 M-Ohm
Mechanical Specification
Design Standard	CECC22220
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	10N min
Cable Retention	60N min
Weight	1.51g
Mating Force	10N Max
Un-Coupling Force	20N Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Brass
Outer Contact	Phosphor Bronze
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group AB

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 179DT	AB	75	2.54	PEF	1.42	BC	0.31	1/0.31	Foil and Braid
RG179 B/U	AB	75	2.54	PTFE	1.6	SCCS	0.3	7/0.1	Copper Braid
RG179 Solid	AB	75	2.54	Foam	1.6	SCSC	0.3	1/0.3	Copper Braid
RG179 Stranded	AB	75	2.54	Foam	1.6	SCSC	0.3	7/0.1	Copper Braid
RG187	AB	75	2.67	PTFE	1.52	SCCS	0.3	7/0.1	Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD04
Centre Contact	0.95 Sq	96-HTS-43
Outer Contact	3.25mm Hex	96-HTS-43

Accessories

Centre Contact Crimp Tool	96-HTS-43
Outer Contact Crimp Tool	96-HTS-43
Crimp Sleeve	100-044

Downloads

Interface Dimensions	C-MCX
Stripping Dimensions	SD04
Data Sheet	45 005 D6 AB REV A00 1
Assembly Process	AP001
