Back to MCX MCX

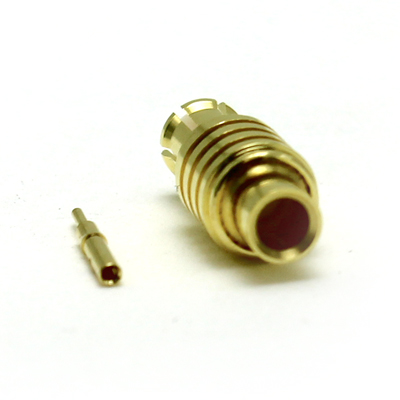

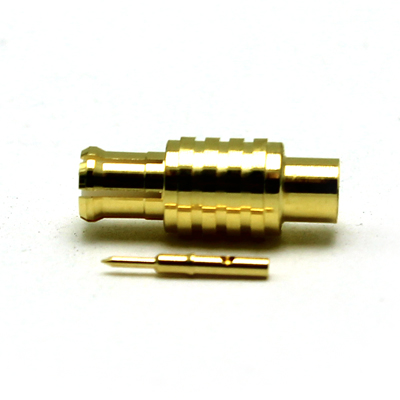

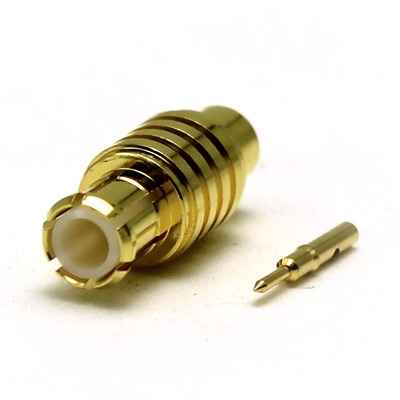

MCX Straight Solder / Solder Plug

45-014-D3-HA

MCX 50 ohm full crimp straight plug gold plated contact and body. Contact and crimp sleeve are annealed to provide a robust and durable termination. suitable for use with RG405 semi-rigid and similar cables in group HA.

Error loading MacroEngine script (file: )

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 6GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Return Loss -29.3 dB @ 6GHz
Mechanical Specification
Design Standard CECC22220
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 200N min
Weight 0.8g
Mating Force 10N Max
Un-Coupling Force 20N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Brass
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group HA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG405 (.085") HA 50 2.2 PTFE 1.68 SCCS 0.51 1/0.51 Solid Copper Tube

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP033
Centre Contact Solder
Outer Contact Solder

Accessories

Centre Contact Solder
Outer Contact Solder

Downloads

Interface Dimensions C-MCX
Data Sheet 45 014 D3 HA REV A00 1
Assembly Process AP033
