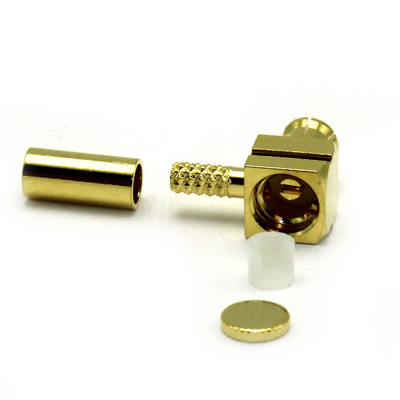

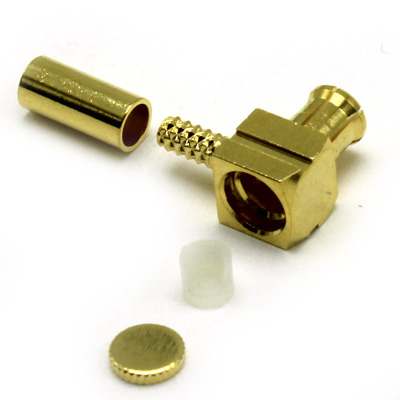

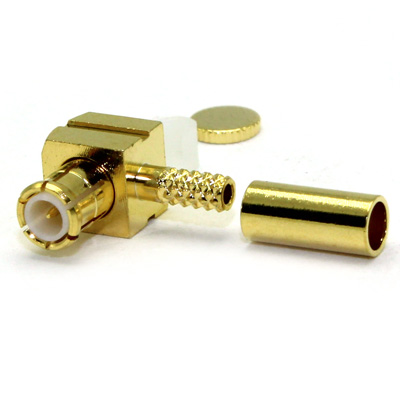

MCX Right Angle Solder / Crimp Plug

45-105-D3-AA

MCX 50 ohm right angle plug with soldered centre contact and crimped braid. Gold plated body and contact, suitable for use with flexible cables in group AA.

From £2.00 each ex VAT
1-9 = £3.00 |  10-24 = £2.96 |  25-49 = £2.59 |  50-99 = £2.30 |  +100 = £2.00

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 6GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard CECC22220
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 60N min
Weight 1.59g
Mating Force 10N Max
Un-Coupling Force 20N Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Brass
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG178 AA 50 1.8 PTFE 0.84 SCCS 0.3 7/0.1 Copper Braid
RG196 AA 50 1.83 PTFE 0.86 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP017
Stripping Dimensions SD06
Centre Contact Solder
Outer Contact 3.25mm Hex 96-336J

Accessories

Centre Contact Crimp Solder
Outer Contact Crimp Tool 96-336J

Downloads

Interface Dimensions C-MCX
Stripping Dimensions SD06
Assembly Process AP017
