45-105-D3-AB

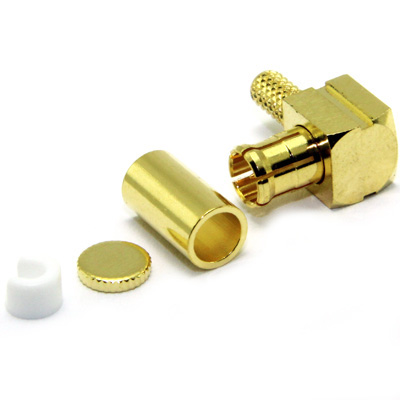

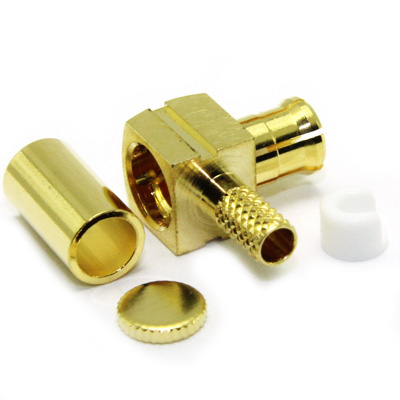

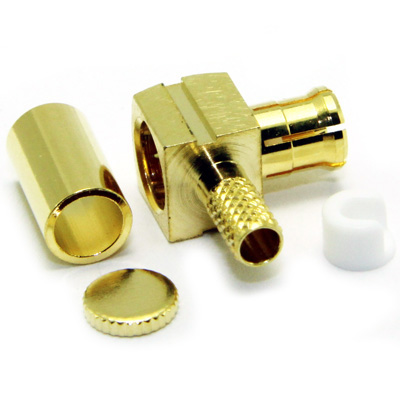

MCX 75 ohm right angle plug with soldered centre contact and crimped braid. Suitable for use with RG179 and similar cables in group AB.

From £7.32 each ex VAT
1-9 = £8.00 | 10-24 = £7.78 | 25-49 = £7.52 | 50-99 = £7.42 | +100 = £7.32

Want higher quantities?
Contact info@coaxdirect.com

Electrical Specification
Impedance	75 Ohm
Frequency Range	Up to 3GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	1000 M-Ohm
Mechanical Specification
Design Standard	CECC22220
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Crimp
Mating Cycles	250
Contact Retention	10N min
Cable Retention	60N min
Weight	1.59g
Mating Force	10N Max
Un-Coupling Force	20N Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Brass
Outer Contact	Phosphor Bronze
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 179DT	AB	75	2.54	PEF	1.42	BC	0.31	1/0.31	Foil and Braid
RG179 B/U	AB	75	2.54	PTFE	1.6	SCCS	0.3	7/0.1	Copper Braid
RG179 Solid	AB	75	2.54	Foam	1.6	SCSC	0.3	1/0.3	Copper Braid
RG179 Stranded	AB	75	2.54	Foam	1.6	SCSC	0.3	7/0.1	Copper Braid
RG187	AB	75	2.67	PTFE	1.52	SCCS	0.3	7/0.1	Copper Braid

Performance Data available on request, please contact COAX

Centre Contact Crimp	Solder
Outer Contact Crimp Tool	96-336J
