45-108-D3-HA

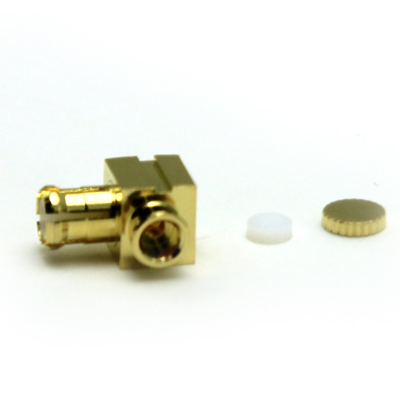

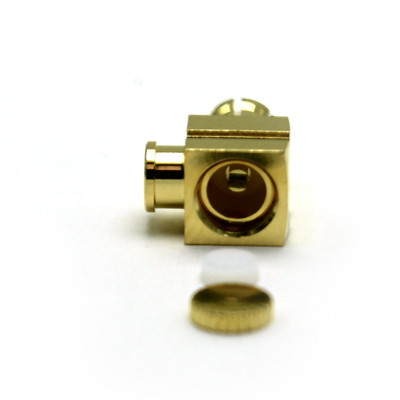

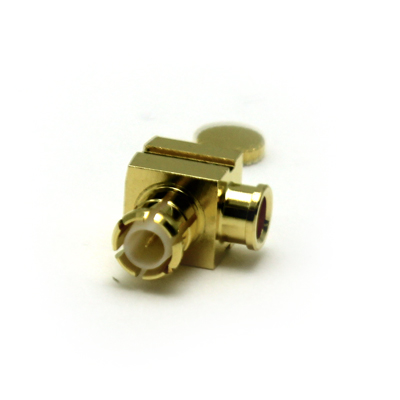

MCX 50 ohm right angle plug for direct solder to 0.085" semi-rigid cables in group HA.

Please contact COAX Direct for prices/availability

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 6GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	1000 M-Ohm
Mechanical Specification
Design Standard	CECC22220
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Solder
Mating Cycles	250
Contact Retention	10N min
Cable Retention	200N min
Weight	1.59g
Mating Force	10N Max
Un-Coupling Force	20N Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Brass
Outer Contact	Phosphor Bronze
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RG405 (.085")	HA	50	2.2	PTFE	1.68	SCCS	0.51	1/0.51	Solid Copper Tube

Performance Data available on request, please contact COAX

Centre Contact Crimp	Solder
Outer Contact Crimp	Solder
