45-347-Q3-HA

Shop online for RF Connectors and Cable Assemblies

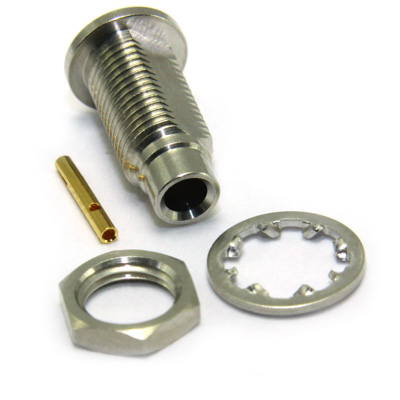

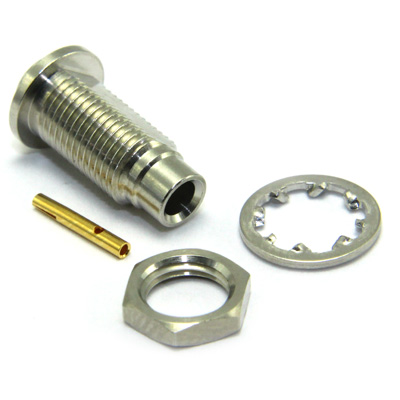

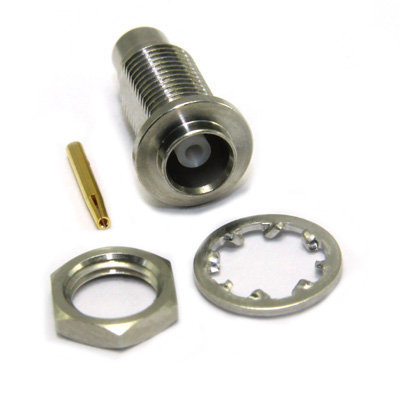

MCX Rear Mount Bulkhead Solder / Solder Jack ( White Bronze )

MCX 50 ohm straight bulkhead jack, rear mount for direct solder to semi-rigid cables in group HA. This part has a white bronze plated body for improved wear and intermodulation performance, with a gold plated contact. The white bronze finish enables these connectors to be mounted on an aluminium panel without the risk of corrosion occurring.

From £3.50 each ex VAT
1-9 = £3.90 | 10-24 = £3.80 | 25-49 = £3.70 | 50-99 = £3.60 | +100 = £3.50

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 6GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	1000 M-Ohm
Return Loss	-29.3 dB @ 6GHz
Mechanical Specification
Design Standard	CECC22220
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Solder
Mating Cycles	250
Contact Retention	10N min
Cable Retention	200N min
Weight	1.59g
Mating Force	10N Max
Un-Coupling Force	20N Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Beryllium Copper
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	White Bronze
Pack Size	1

Suitable for Cables in Group HA

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RG405 (.085")	HA	50	2.2	PTFE	1.68	SCCS	0.51	1/0.51	Solid Copper Tube

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP033
Centre Contact	Solder
Outer Contact	Solder

Accessories

Centre Contact Crimp	Solder
Outer Contact Crimp	Solder

Downloads

Interface Dimensions	C-MCX
Assembly Process	AP033
