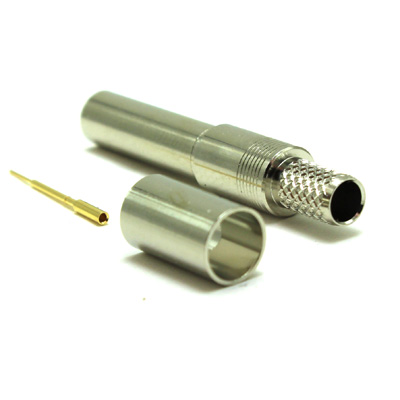

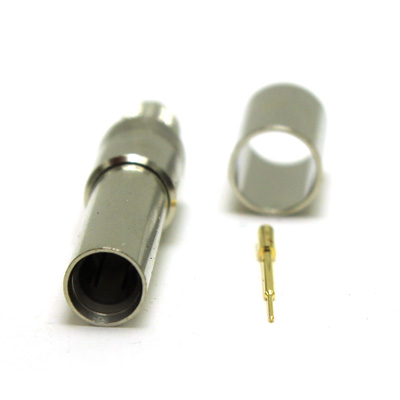

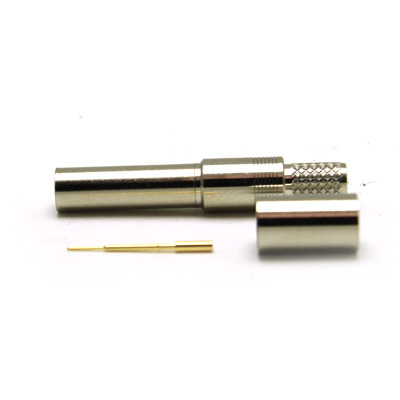

microMUSA 12G Crimp / Crimp Jack

64-054-B126-EJ1

microMUSA 12G Crimp /Crimp Jack
Suitable for cable in group EJ.
The 12G performance of the “microMUSA” connector system exceeds the requirements of SMPTE ST 2082-1 making it suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 18GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 10000 M-Ohm
Mechanical Specification
RoHS Compliant Yes
Mating Cycles Micro Musa 5000
Weight 4.41g
Mating Force 10N max
Un-Coupling Force 25N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP30
Materials
Centre Contact Beryllium Copper
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group EJ

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Canare L-2.5CHWS EJ 75 4.2 PE 2.6 BC 0.6 7/0.20 Foil and Braid

Performance

Performance Data Micromusa Complet Assembley

Assembly

Centre Contact 1.07 mm Sq 96-HTS-77
Outer Contact 4.52 mm Hex 96-HTS-77

Accessories

Downloads

Data Sheet 64 054 B126 EJ1 REV B00 1
Performance Data Micromusa Complet Assembley
