47-105-D3-AA

Shop online for RF Connectors and Cable Assemblies

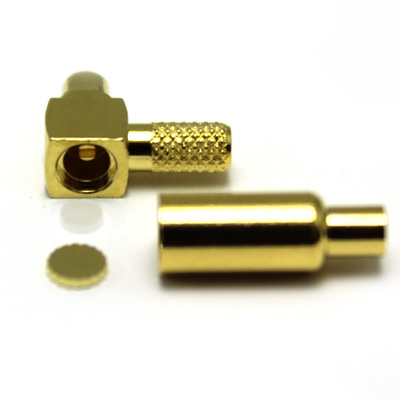

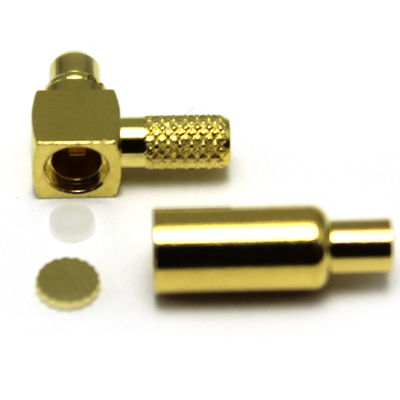

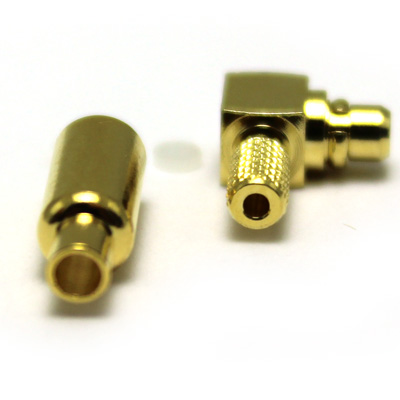

MMCX Right Angle Solder / Crimp Plug

MMCX 50 ohm right angle solder crimp plug. With gold plated centre contact and annealed crimp sleeve for reliable enhanced performance. Suitable for use with RG178 and similar cables in group AA

From £1.57 each ex VAT
1-9 = £2.85 | 10-24 = £2.40 | 25-49 = £2.15 | 50-99 = £1.99 | +100 = £1.57

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	Up to 6GHz
Dielectric Withstand Voltage	500 Veff
Insulation Resistance	1000 M-Ohm
Mechanical Specification
Design Standard	IEC 122340
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Crimp
Mating Cycles	500
Contact Retention	7N min
Cable Retention	60N min
Weight
Mating Force	10N Max
Un-Coupling Force	20N Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP40
Materials
Centre Contact	Phosphor Bronze
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group AA

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RG178	AA	50	1.8	PTFE	0.84	SCCS	0.3	7/0.1	Copper Braid
RG196	AA	50	1.83	PTFE	0.86	SCCS	0.3	7/0.1	Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP017
Stripping Dimensions	47-005-SD
Outer Contact	3.25mm Hex	96-336J

Accessories

Solder
Outer Contact Crimp Tool	96-336J

Downloads

Interface Dimensions	C-MMCX
Stripping Dimensions	47-005-SD
Assembly Process	AP017
