N Type Straight Bulkhead Jack to Jack Adaptor

25-501-B3

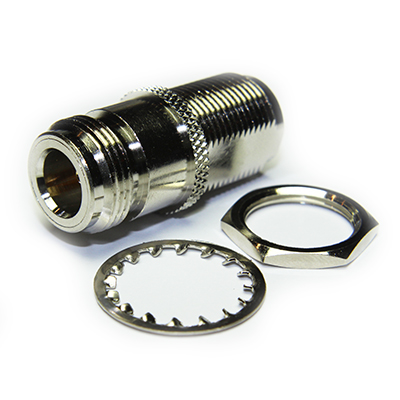

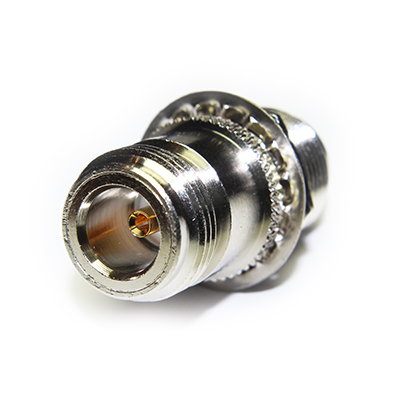

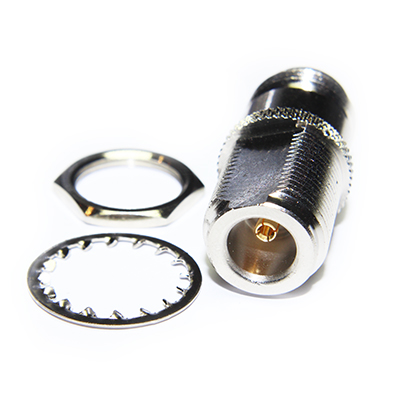

N Type 50 ohm straight jack to jack bulkhead mount adaptor. This adaptor has a single flat on the body for D hole fixing and a gold plated centre conductor with nickel plated body.

From £4.31 each ex VAT
1-9 = £5.88 |  10-24 = £5.39 |  25-49 = £4.97 |  50-99 = £4.62 |  +100 = £4.31

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 6GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -27.2dB @ 6 Ghz
Mechanical Specification
Design Standard IEC 61169-8
RoHS Compliant Yes
Mating Cycles 500
Contact Retention 27N min
Weight 43.9g
Mating Force 6.6Ncm max
Un-Coupling Force 6.6Ncm max
Environmental Specification
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX
3Ghz -32.7dB
6Ghz -27.2dB
9Ghz -12.5dB
12Ghz -9.1dB
18Ghz -7.8dB

Assembly

Accessories

Hex Nut 100-039

Downloads

Interface Dimensions C-50-Ohm-N
Data Sheet 25 501 B3 REV A00 3
