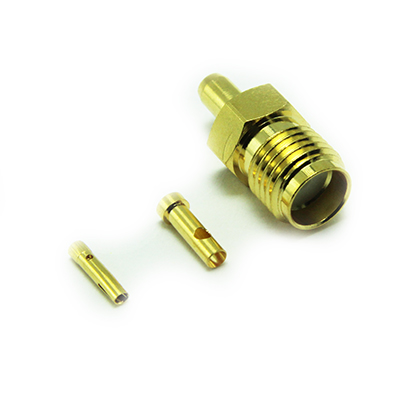

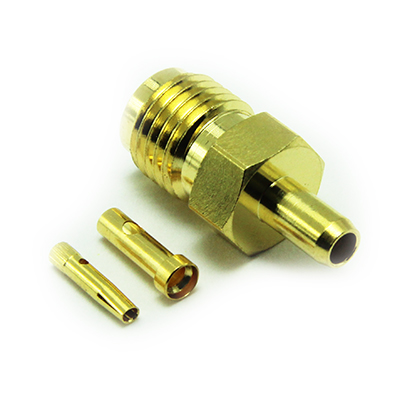

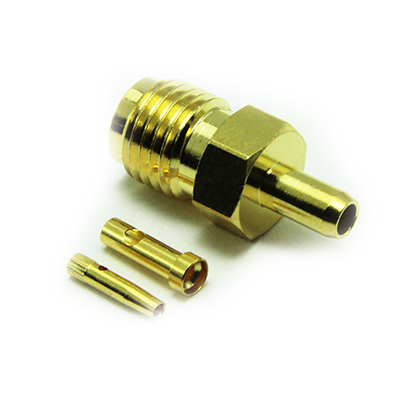

SMA Crimp / Crimp Jack

30-054-D3-AA

SMA full crimp straight jack. Contact and body are gold plated. Contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG178 and similar cables in group AA.

Please contact COAX Direct for prices/availability

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 100
Contact Retention 27N min
Cable Retention 100N min
Weight 3.7g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG178 AA 50 1.8 PTFE 0.84 SCCS 0.3 7/0.1 Copper Braid
RG196 AA 50 1.83 PTFE 0.86 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact 1.07 Square 96-336J
Outer Contact 3.25mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-336J
Outer Contact Crimp Tool 96-336J

Downloads

Interface Dimensions C-SMA
