SMA Easy Fit / Crimp Jack

30-068-B3-DE

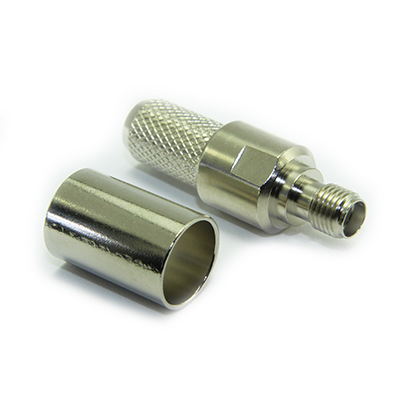

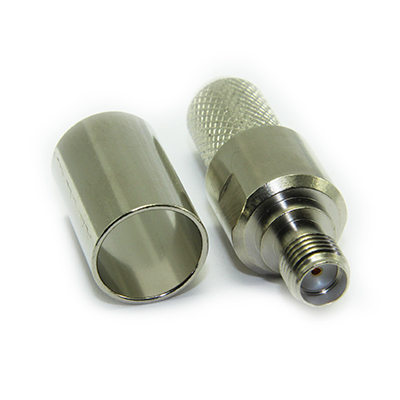

SMA straight jack with Easy Fit centre contact and crimped outer contact. Easy Fit contact is simply pushed onto the centre conductor giving a reliable termination. Centre contact is gold plated. Suitable for use with Times LMR®400 and similar cables in group DE.

From £3.39 each ex VAT
1-9 = £4.75 |  10-24 = £4.32 |  25-49 = £3.96 |  50-99 = £3.65 |  +100 = £3.39

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Easy Fit
Outer Contact Termination Crimp
Mating Cycles 100
Contact Retention 27N min
Cable Retention 150N min
Weight 11.6g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1

Suitable for Cables in Group DE

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 7810A DE 50 10.24 PE 7.24 BCCAl 2.74 1/2.74 Foil and Braid
Belden 8214 DE 50 10.2 PE 7.26 BC 2.74 7x19 Copper Braid
Belden 9913 DE 50 10.29 PE 7.26 BC 2.74 1/2.74 Copper Braid
Belden H1000PE DE 50 10.3 PEF 7.15 BC 2.62 1/2.62 Foil and Braid
Belden H2000 Flex DE 50 10.3 PEF 7.15 BC 2.62 1/2.62 Foil and Braid
RG8 DE 50 10.24 PE 7.24 BC 2.62 1/2.62 Foil and Braid
Times LMR®400 DE 50 10.29 PEF 7.24 BCCAl 2.74 1/2.74 Foil and Braid
Times LMR®400 Ultraflex DE 50 10.29 PEF 7.24 BC 2.74 7/0.96 Foil and Braid
TZC50032 DE 50 10.3 PE 7.24 BC 2.74 1/2.74 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP25-018
Stripping Dimensions 30-018-B3-DE-SD
Centre Contact Easy Fit
Outer Contact 10.9 mm Hex 96-336K

Accessories

Outer Contact Crimp Tool 96-336K

Downloads

Interface Dimensions C-SMA
Stripping Dimensions 30-018-B3-DE-SD
Assembly Process AP25-018
