30-256-B3-AA

Shop online for RF Connectors and Cable Assemblies

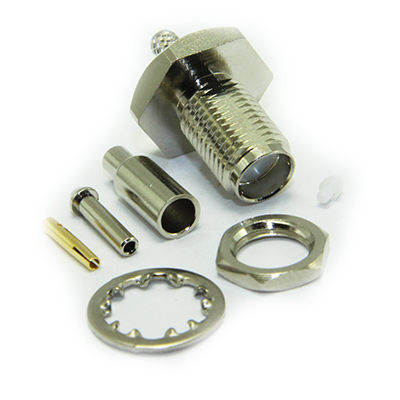

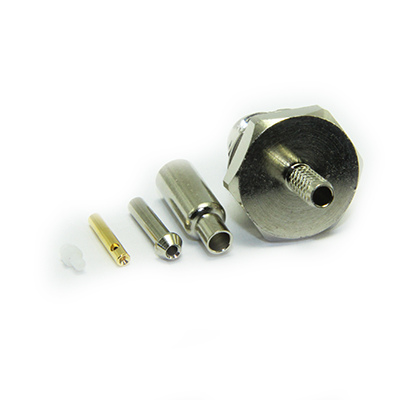

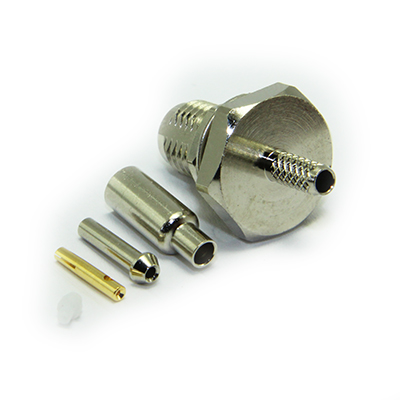

SMA Rear Mount Bulkhead Crimp / Crimp Jack ( 4 part Nickel )

SMA bulkhead mount full crimp jack, rear mounted with a single flat on the body. Nickel plated body and Golg plated contact, the centre contact and crimp sleeve are annealed for enhanced performance. Suitable for RG178 and similar cables in group AA.

From £3.75 each ex VAT
1-9 = £4.22 | 10-24 = £4.08 | 25-49 = £3.96 | 50-99 = £3.85 | +100 = £3.75

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance	50 Ohm
Frequency Range	12.5GHz
Dielectric Withstand Voltage	750 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-15
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	100
Contact Retention	27N min
Cable Retention	60N min
Weight	4.9g
Mating Force	23Ncn
Un-Coupling Force	23Ncn
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP67
Materials
Centre Contact	Beryllium Copper
Outer Contact	Brass
Insulator	PTFE
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Suitable for Cables in Group AA

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
RG178	AA	50	1.8	PTFE	0.84	SCCS	0.3	7/0.1	Copper Braid
RG196	AA	50	1.83	PTFE	0.86	SCCS	0.3	7/0.1	Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process	AP001
Stripping Dimensions	SD03
Centre Contact	1.07 Square	96-336J
Outer Contact	3.25mm Hex	96-336J

Accessories

Centre Contact Crimp Tool	96-336J
Outer Contact Crimp Tool	96-336J

Downloads

Interface Dimensions	C-SMA
Stripping Dimensions	SD03
Assembly Process	AP001
