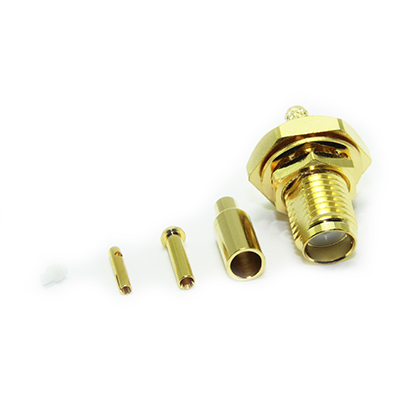

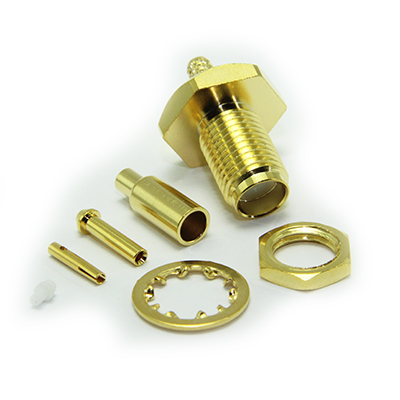

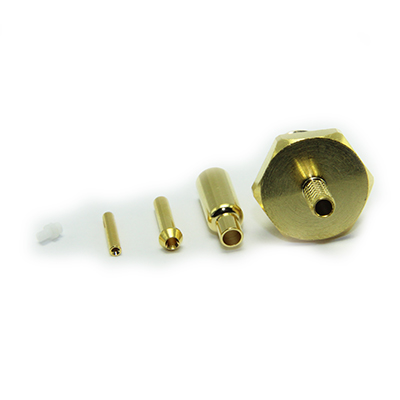

SMA Rear Mount Bulkhead Solder / Crimp Jack (5 part)

30-282-D3-AA

SMA bulkhead mount full crimp jack, rear mounted with a single flat on the body. Gold plated body and contact, the crimp sleeve is annealed for enhanced performance. Suitable for RG178 and similar cables in group AA.

From £3.77 each ex VAT
1-9 = £4.52 |  10-24 = £4.18 |  25-49 = £3.98 |  50-99 = £3.87 |  +100 = £3.77

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 60N min
Weight 4.9g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AA

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
RG178 AA 50 1.8 PTFE 0.84 SCCS 0.3 7/0.1 Copper Braid
RG196 AA 50 1.83 PTFE 0.86 SCCS 0.3 7/0.1 Copper Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP002
Outer Contact 3.25mm Hex 96-336J

Accessories

Outer Contact Crimp Tool 96-336J

Downloads

Interface Dimensions C-SMA
Data Sheet 30-256-D3-AA-REV-A00-1
Assembly Process AP002
