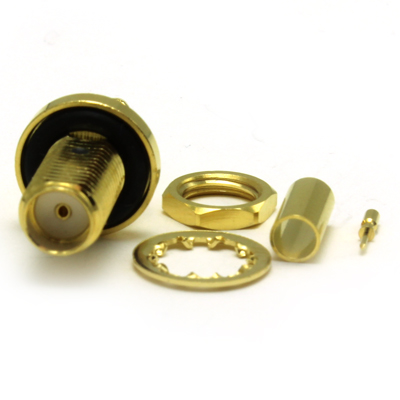

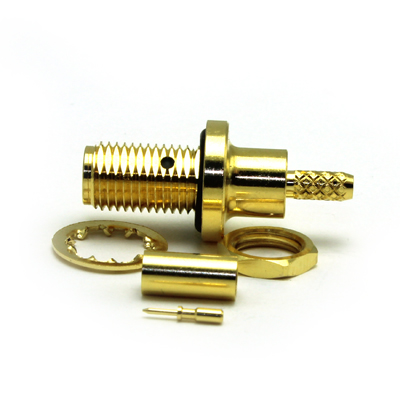

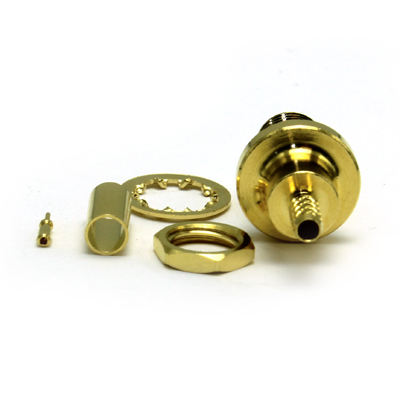

SMA Rear Mount Bulkhead Crimp/Crimp Jack IP68 Sealed

30-290-D10-AD

SMA 50 ohm bulkhead mount full crimp jack IP68 Hermetically Sealed and tested to 10m un mated, rear mounted with a single flat on the body. Gold plated contact and body. The centre contact and crimp sleeve are annealed for enhanced performance. Suitable for cables in group AD.

From £10.30 each ex VAT
1-9 = £25.88 |  10-24 = £18.23 |  25-49 = £12.94 |  50-99 = £10.35 |  +100 = £10.30

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12GHz
Dielectric Withstand Voltage 500 Veff
Insulation Resistance 1000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-10
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 10N min
Cable Retention 100N min
Weight 3.21g
Mating Force 62N max
Un-Coupling Force 62N max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Unmated ) IP68 10m x 1 Hours ( Tested to 50m )
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Assembly Process AP050
Centre Contact 0.95SQ 96-HTS43
Outer Contact 3.25mm Hex 96-HTS43

Accessories

Centre Contact Crimp Tool 96-HTS43
Outer Contact Crimp Tool 96-HTS43

Downloads

Interface Dimensions C-SMA
Data Sheet 30 290 D10 AD REV A02 1
Assembly Process AP050
