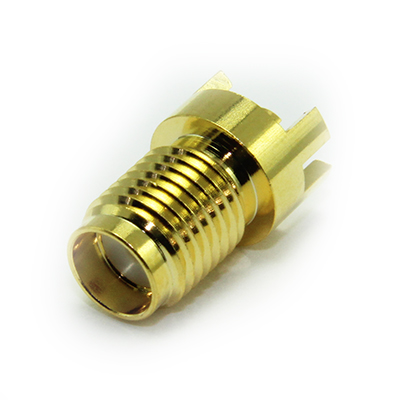

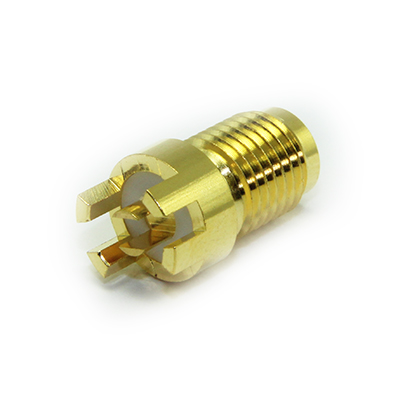

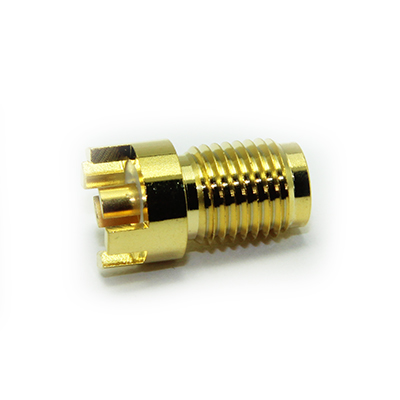

SMA Centre Line End Launch Jack, 1.6mm

30-390-D3-1.57

SMA end launch PCB jack. Suitable for soldering to a 1.6mm thick PCB, the centre line of the SMA is aligned to the PCB. Contact and body are gold plated.

From £3.22 each ex VAT
1-9 = £4.83 |  10-24 = £4.02 |  25-49 = £3.50 |  50-99 = £3.45 |  +100 = £3.22

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 100
Contact Retention 27N min
Weight 4.2g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group N/A

No specific cables are associated with this connector

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact Solder
Outer Contact Solder

Accessories

Downloads

Interface Dimensions C-SMA
Data Sheet 30 390 D3 1 57 REV A00 2
