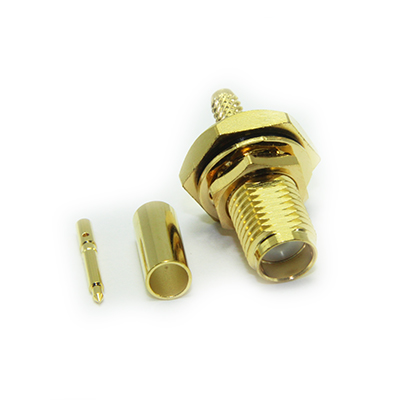

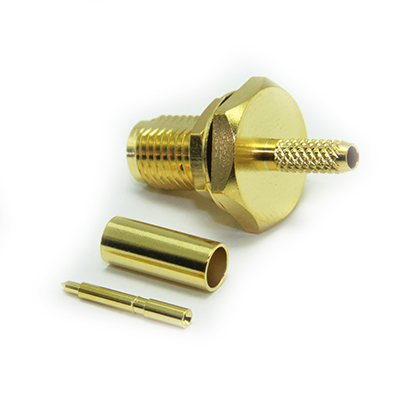

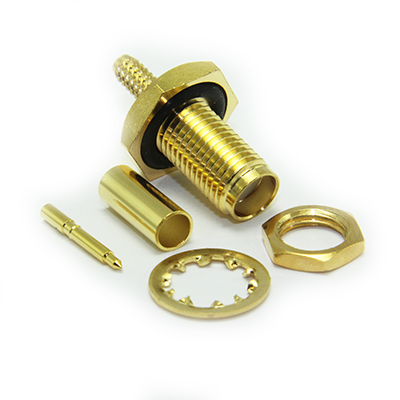

SMA Reverse Polarity Bulkhead Crimp / Crimp Jack (With Panel Seal)

31-254-D3-AD

SMA reverse polarity, straight full crimp bulkhead jack, with gold plated contact and body. The body has a single flat for D hole rear mounting. Contact and crimp sleeve are annealed for enhanced performance and includes an IP67 panel seal. Suitable for use with RG174 and similar cables in group AD.

From £1.87 each ex VAT
1-9 = £2.49 |  10-24 = £2.34 |  25-49 = £2.08 |  50-99 = £1.97 |  +100 = £1.87

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 12.5GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 100
Contact Retention 27N min
Cable Retention 100N min
Weight 7.1g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group AD

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
KX22 AD 50 2.5 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
KX3 AD 50 2.54 PE 1.5 CCS 0.48 7/0.16 Copper Braid
RG174 AD 50 2.79 PE 1.52 BCCS 0.48 7/0.16 Copper Braid
RG188 AD 50 2.67 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
RG316 AD 50 2.49 PTFE 1.52 SCCS 0.51 7/0.17 Copper Braid
Times LMR®100 AD 50 2.79 PE 1.52 BCCS 0.46 1/0.46 Foil and Braid
URM95 AD 50 2.3 PE 1.5 SCCS 0.46 1/0.46 Copper Braid
WBC100 AD 50 2.67 PE 1.52 CCS 0.46 1/0.46 Foil and Braid

Performance

Performance Data available on request, please contact COAX

Assembly

Centre Contact 1.07mm Square 96-336J
Outer Contact 3.25mm Hex 96-336J

Accessories

Centre Contact Crimp Tool 96-336J
Outer Contact Crimp Tool 96-336J

Downloads

Interface Dimensions C-RP-SMA
