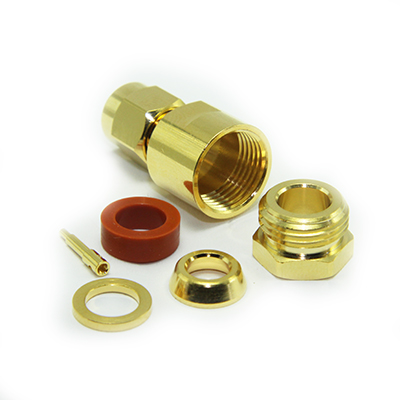

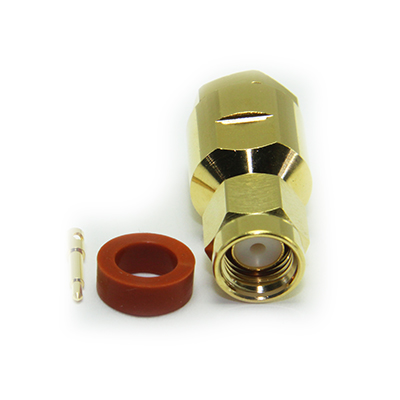

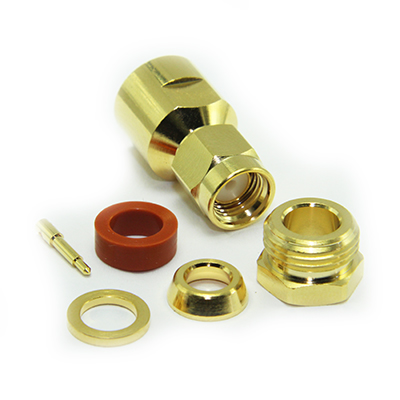

30-002-D3-AH - SMA Solder / Clamp Plug

Electrical Specification
Impedance	50 Ohm
Frequency Range	12.5GHz
Dielectric Withstand Voltage	750 Veff
Insulation Resistance	5000 M-Ohm
Mechanical Specification
Design Standard	IEC 60169-15
RoHS Compliant	Yes
Centre Contact Termination	Solder
Outer Contact Termination	Clamp
Mating Cycles	500
Contact Retention	27N min
Cable Retention	100N min
Weight	8.32g
Mating Force	23Ncn
Un-Coupling Force	23Ncn
Recommended Coupling Nut Torque	60Ncm Max
Environmental Specification
Operating Temperature	-55 to +155 Deg C
IP Rating ( Mated )	IP67
Materials
Centre Contact	Brass
Outer Contact	Brass
Insulator	PTFE
Screw Coupling Nut	Brass
Gasket	Silicon
Centre Contact Plating	Gold
Outer Contact Plating	Gold
Pack Size	1

Cable Type	Cable Group	Impedance Ohms	Jacket O/D mm	Dielectric Material	Dielectric O/D mm	Centre Conductor Material	Centre Conductor O/D mm	Centre Conductor Stranding mm	Shielding Outer Conductor
Belden 7806R	AH	50	4.95	PEF	2.8	BC	0.94	1/0.94	Foil and Braid
Belden 9203	AH	50	4.95	PE	2.95	TC	0.9	19/0.18	Copper Braid
KX15	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
KX23	AH	50	5.1	PTFE	2.95	SC	1.02	7/0.34	Double Copper Braid
PSF 1/6	AH	50	5	PE	2.95	BC	0.96	7/0.32	Double Copper Braid
RG141	AH	50	4.83	PTFE	3	SCCS	0.94	1/0.94	Copper Braid
RG58	AH	50	4.95	PE	2.95	TC	0.91	19/0.18	Copper Braid
Times LMR®195	AH	50	4.95	PEF	2.79	BC	0.94	1/0.94	Foil and Braid
URM43	AH	50	5	PE	2.95	BC	0.9	1/0.9	Copper Braid
URM76	AH	50	5	PE	2.95	TC	0.96	7/0.32	Copper Braid
WBC195	AH	50	4.95	PE	2.79	BC	0.94	1/0.94	Foil and Braid

Performance Data available on request, please contact COAX

Centre Contact	Solder
Outer Contact	Clamp

Rotary Cable Stripper	96-312B
Protective PVC Cap	100-124

Interface Dimensions	C-SMA
Data Sheet	30 002 D3 AH REV A00 2
