SMA Crimp / Crimp Plug

30-005-D3-DB

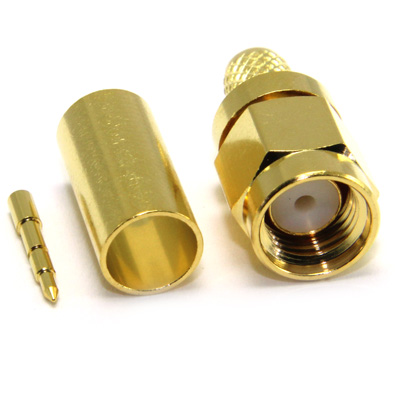

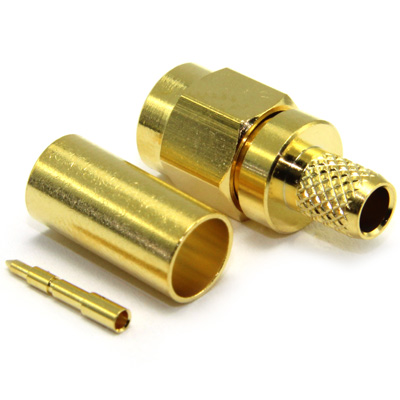

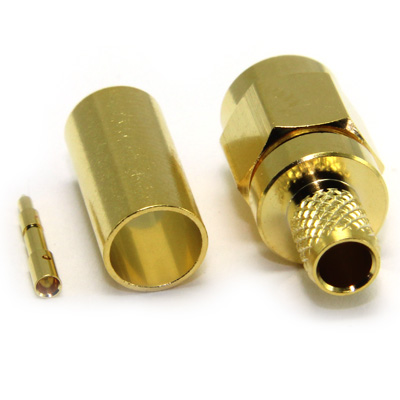

SMA straight full crimp plug. With gold plated contact and body. Contact and crimp sleeve are annealed for enhanced performance. Suitable for use with Times LMR®240 and similar cables in group DB.

From £1.60 each ex VAT
1-9 = £2.80 |  10-24 = £2.25 |  25-49 = £2.00 |  50-99 = £1.75 |  +100 = £1.60

Quantity:       Buy Now Non-UK Customers

Want higher quantities?
Contact info@coaxdirect.com

Specification

Electrical Specification
Impedance 50 Ohm
Frequency Range 18GHz
Dielectric Withstand Voltage 750 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -23db @ 18Ghz
Mechanical Specification
Design Standard IEC 60169-15
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Contact Retention 27N min
Cable Retention 100N min
Weight 5.12g
Mating Force 23Ncn
Un-Coupling Force 23Ncn
Recommended Coupling Nut Torque 60Ncm Max
Environmental Specification
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP67
Materials
Centre Contact Brass
Outer Contact Brass
Insulator PTFE
Screw Coupling Nut Brass
Gasket Silicon
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1

Suitable for Cables in Group DB

Cable Type Cable GroupImpedance
Ohms		Jacket
O/D mm		Dielectric
Material		Dielectric
O/D mm

Centre Conductor
Material

Centre Conductor
O/D mm		Centre Conductor
Stranding mm

Shielding
Outer Conductor
Belden 155 A00 DB 50 5.4 PEF 3.9 BC 1.41 19/0.28 Foil and Braid
Belden 155 PE DB 50 10.3 PEF 3.9 BC 1.4 19/0.28 Foil and Braid
Times LMR®240 DB 50 6.1 PEF 3.81 BC 1.42 1/1.42 Foil and Braid

Performance

Performance Data available on request, please contact COAX
Return Loss
3GHz -32.81db
6GHz -25.93db
9GHz -19.32db

Assembly

Assembly Process AP001
Stripping Dimensions SD03
Centre Contact 1.72 mm Hex 96-336A
Outer Contact 6.48mm Hex 96-336A

Accessories

Centre Contact Crimp Tool 96-336A
Outer Contact Crimp Tool 96-336A
Protective PVC Cap 100-124

Downloads

Interface Dimensions C-SMA
Stripping Dimensions SD03
Data Sheet 30 005 D3 DB REV A01 2
Assembly Process AP001
